Fault 1013: Ignition Circuit High

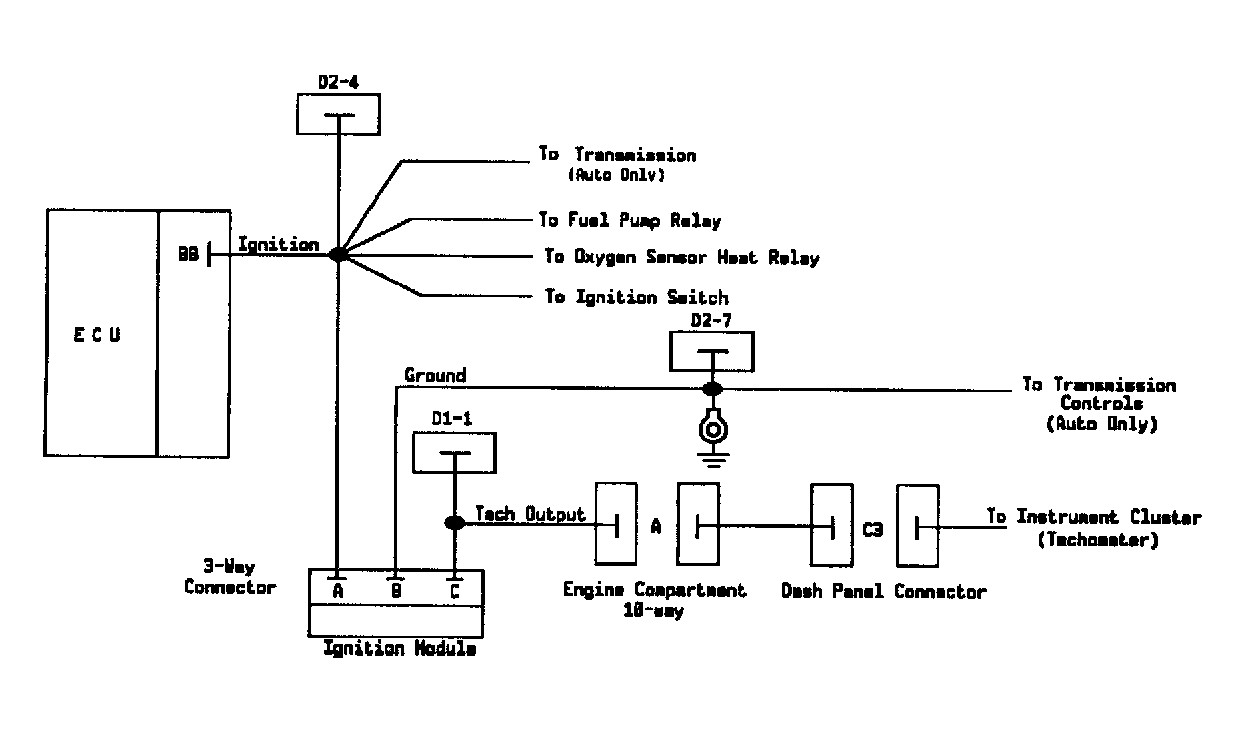

Fig 1: Fault 1013: Circuit Diagram Ignition Circuit High

G90J17821

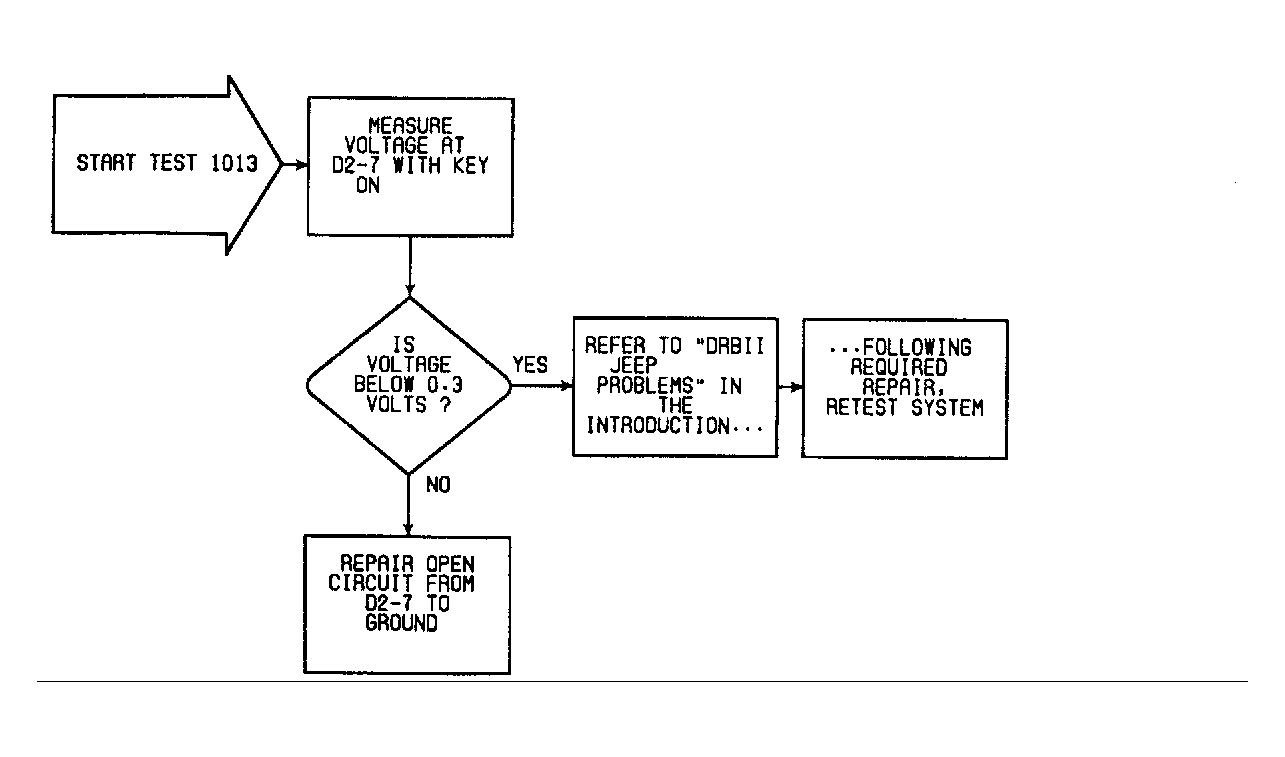

Fig 2: Fault 1013: Flow Chart Ignition Circuit High

G90A17822
