Home >> Jeep >> 1990 >> Cherokee Laredo, 2D Utility, Automatic >> Repair and Diagnosis >> Electrical >> Starter - BOSCH/MITSUBISHI >> Overhaul >> Notes

Starter - BOSCH/MITSUBISHI: Overhaul: Notes

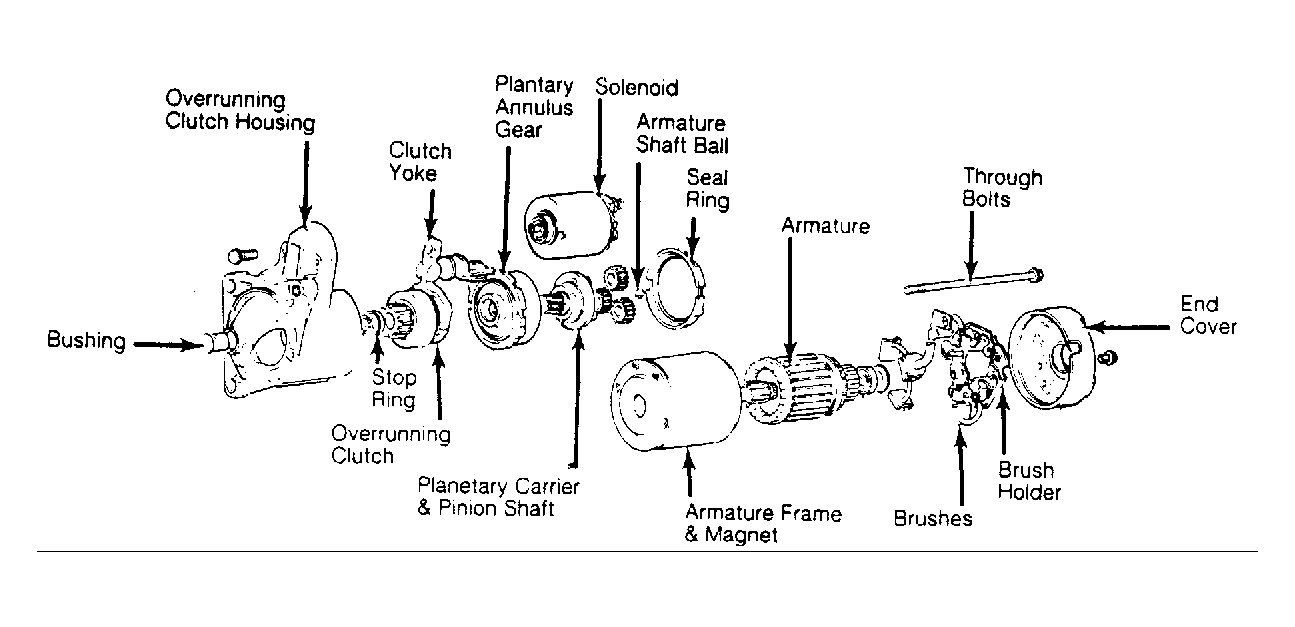

Fig 1: Exploded View of Mitsubishi Starter

G71058

Courtesy of CHRYSLER MOTORS.

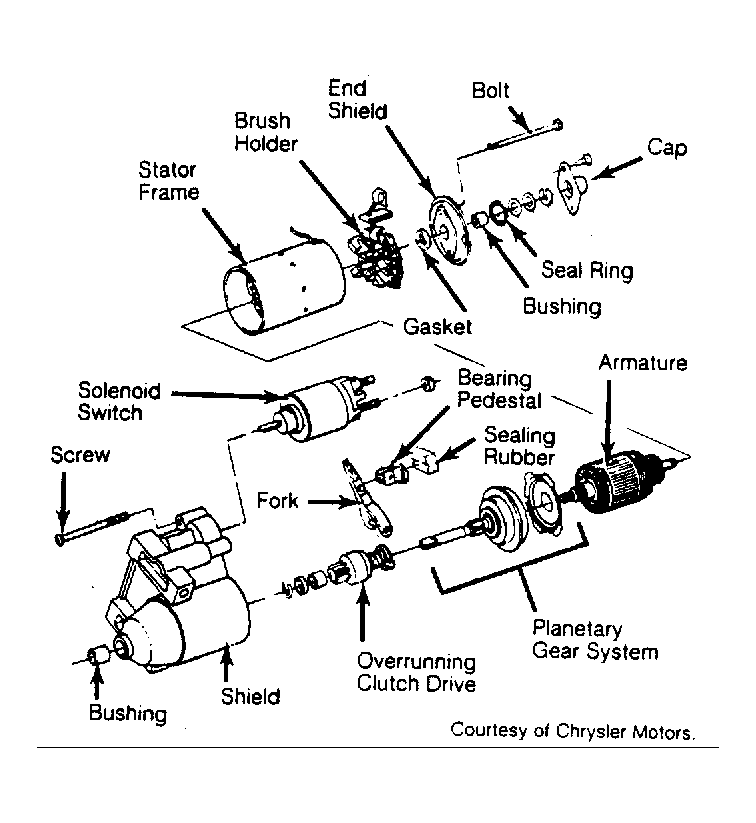

Fig 2: Exploded View of Bosch Starter

G71056

Courtesy of CHRYSLER MOTORS.
