Alternator & Regulator: Overhaul: Notes
NOTE:

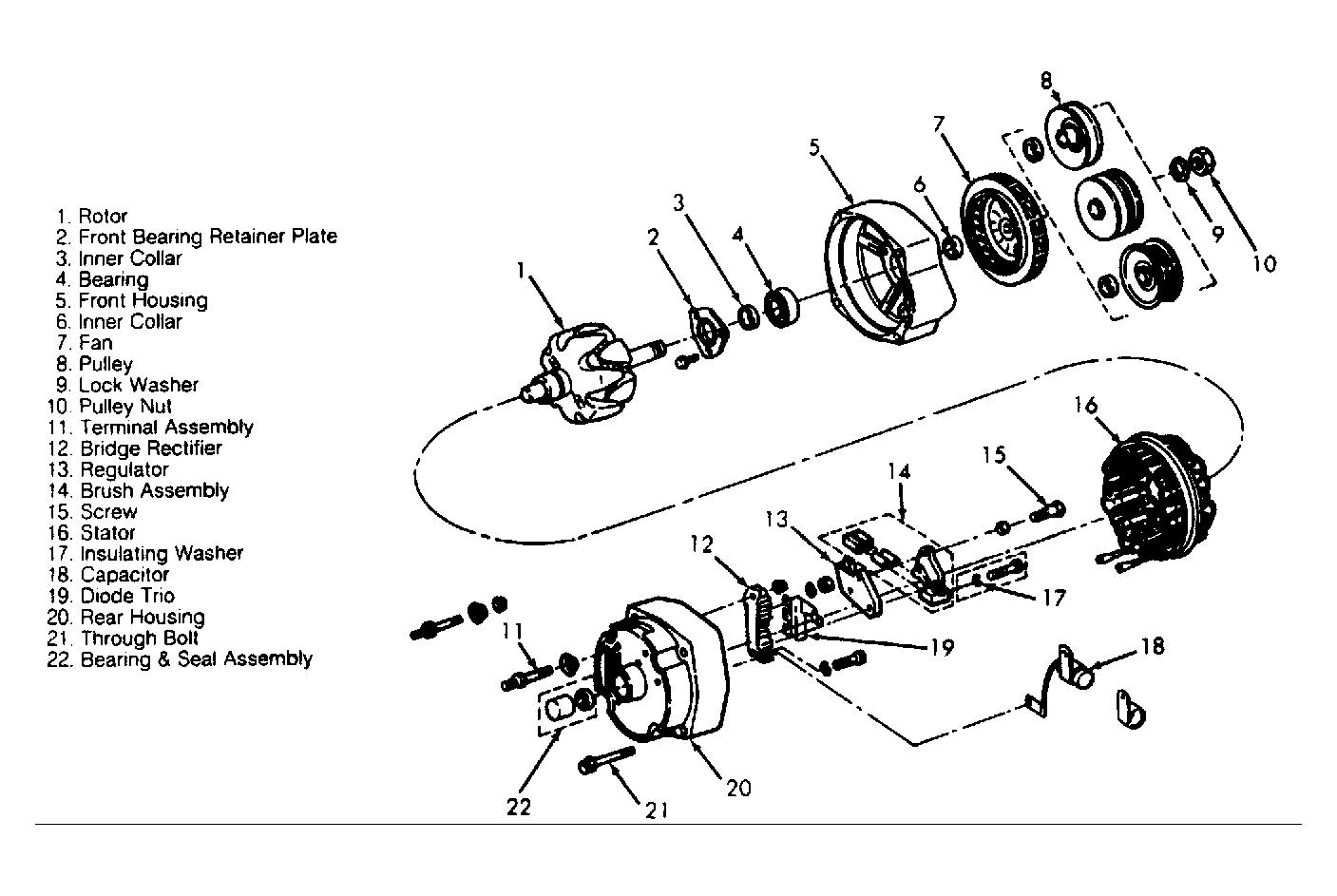

Refer to exploded view in
Figure
for alternator overhaul. Exploded view of CS series alternator not available from manufacturer.
