Code 814 - Low Fluid

Fig 1: ABS Module Connector

G93A45559

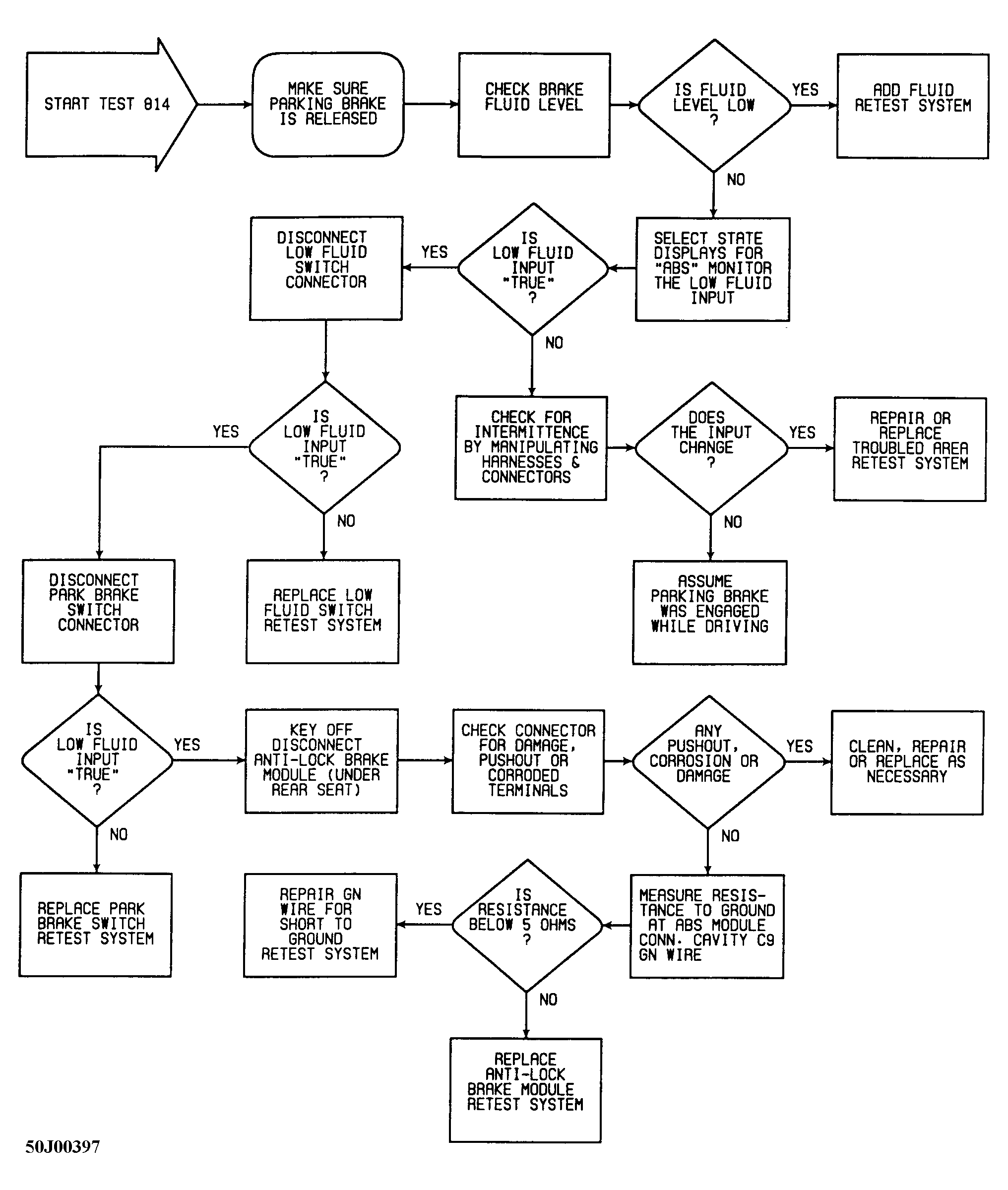

Fig 2: Fault 814: Low Fluid

G50J00397

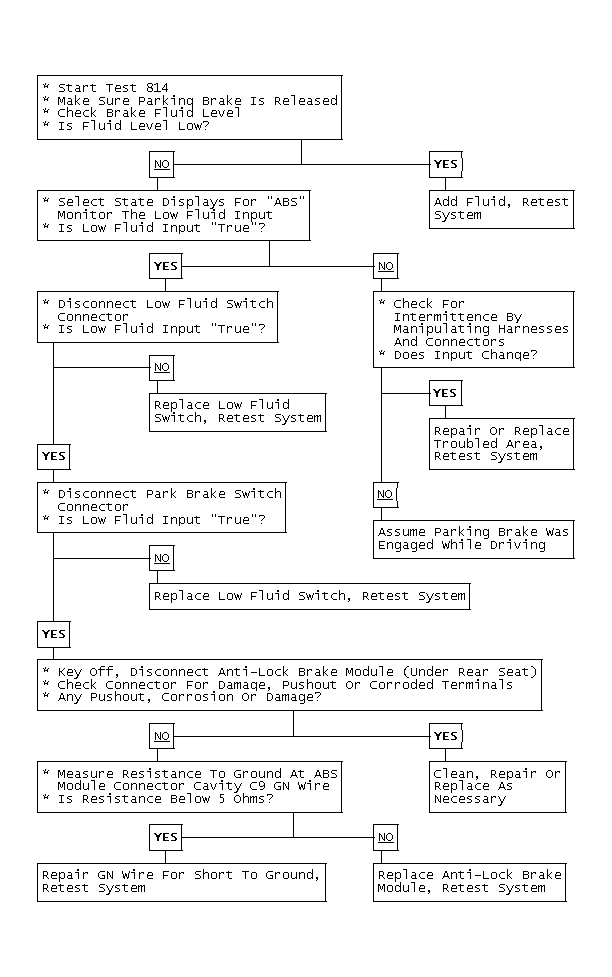

Fig 3: Fault 814: Low Fluid

GB0010724
