Code 808 - Pressure Modulator Fault

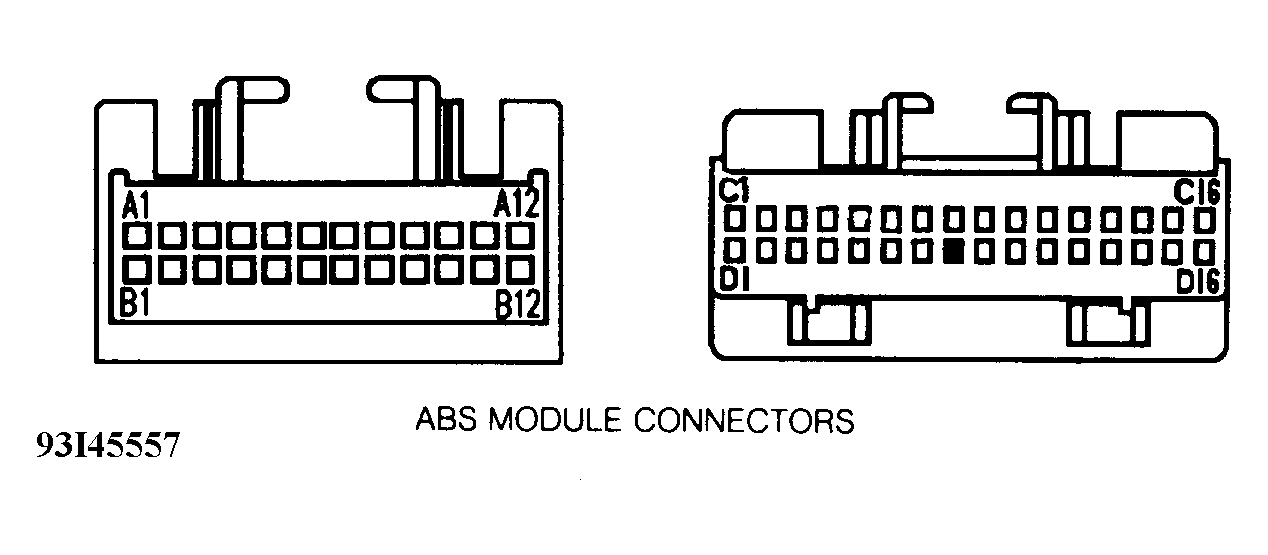

Fig 1: ABS Module Connectors
G93I45557
Fig 2: Modulator Connector
G93D45560

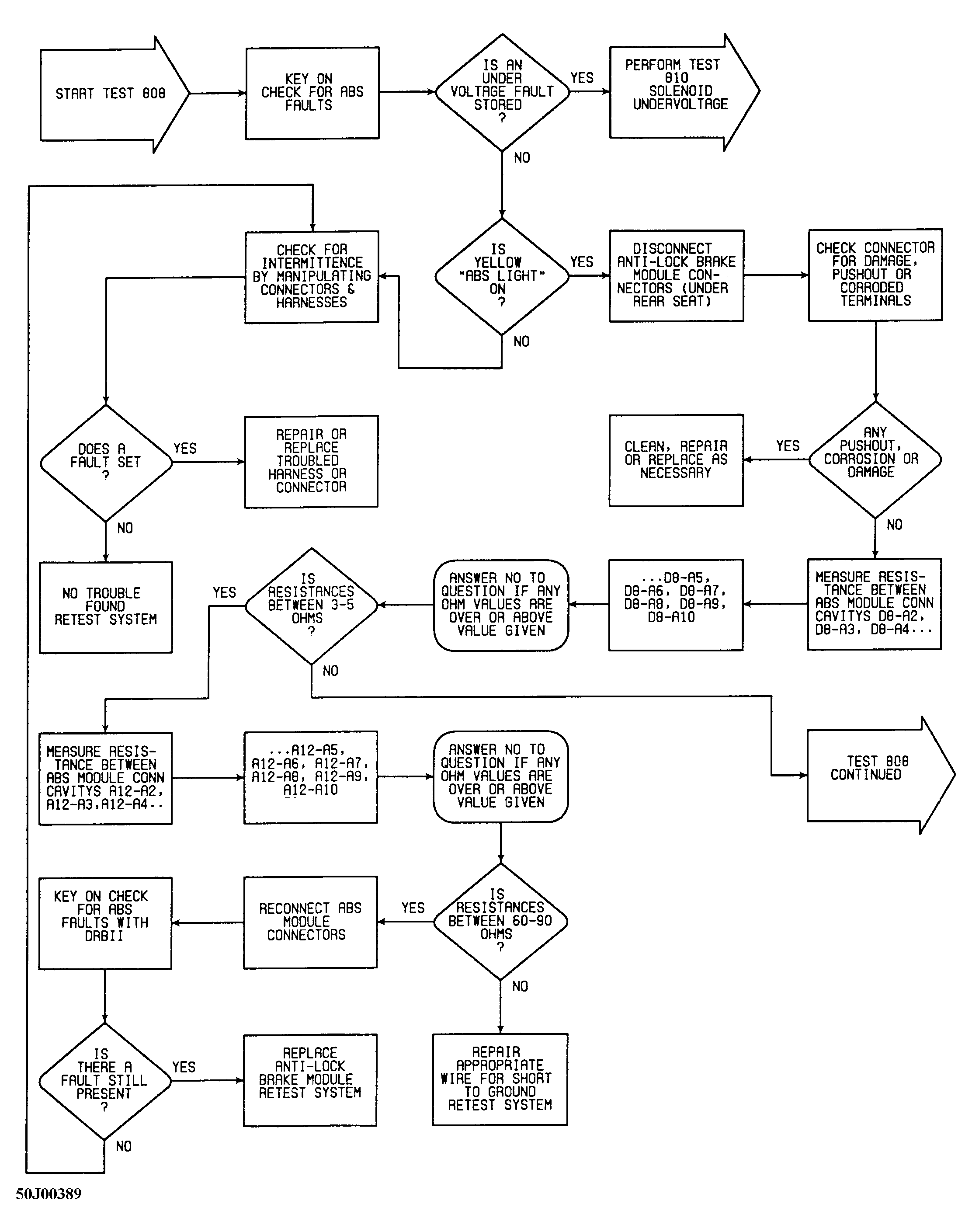

Fig 3: Fault 808: Modulator Fault (1 of 2)
G50J00389

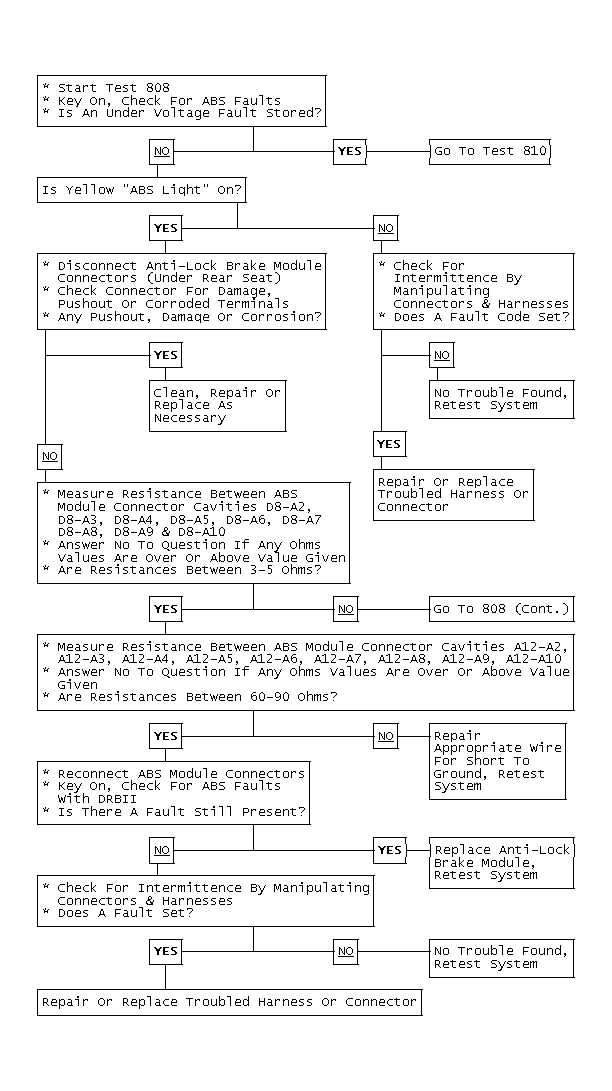

Fig 4: Fault 808: Modulator Fault (1 of 2)
GB0010716

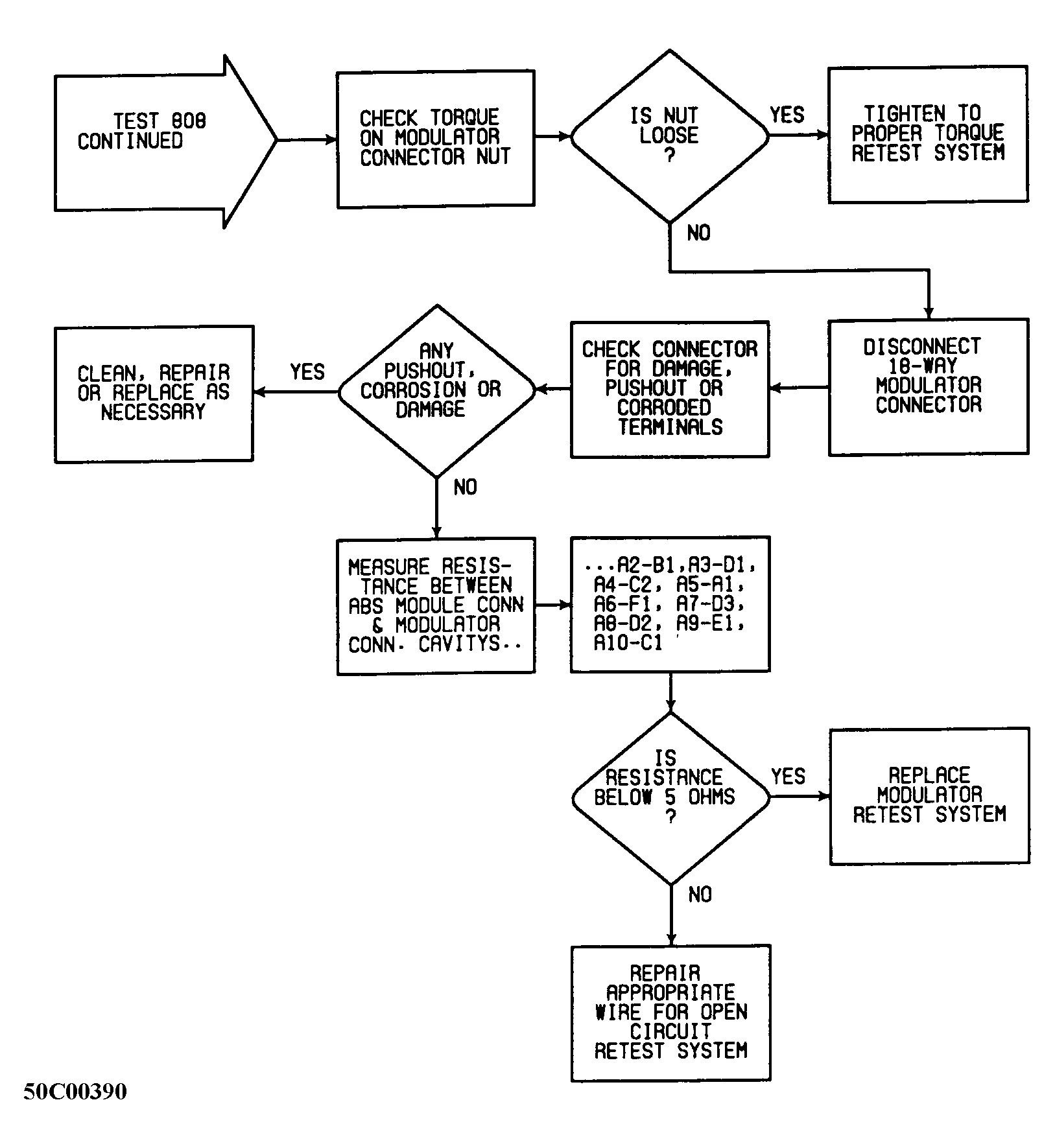

Fig 5: Fault 808: Modulator Fault (2 of 2)
G50C00390
Fig 6: Fault 808: Modulator Fault (2 of 2)
GB0010717
