Code 806 - Boost Pressure Fault

Fig 1: ABS Module Connector

G93A45559

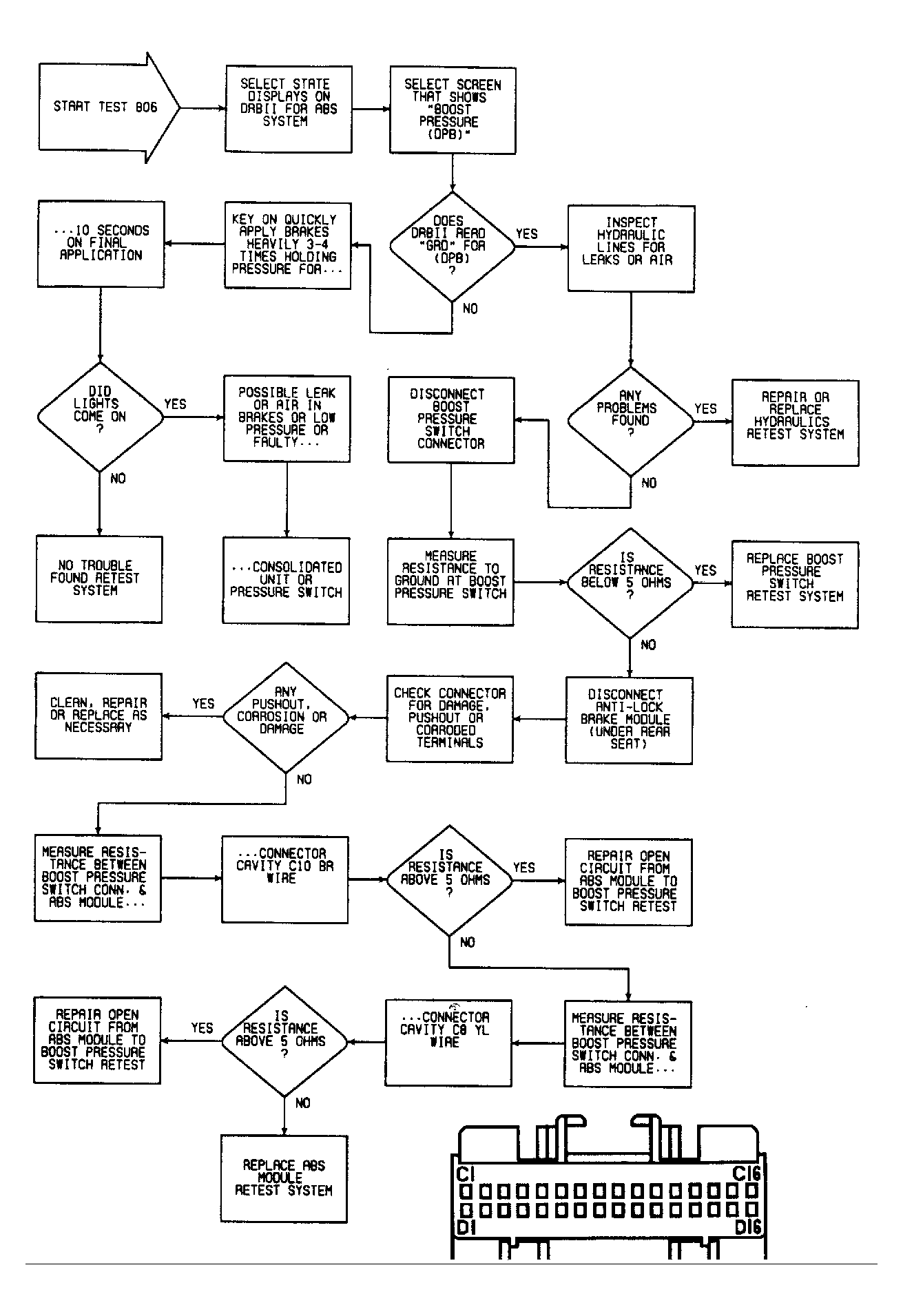

Fig 2: Fault 806: Boost Pressure Fault

G90A06342

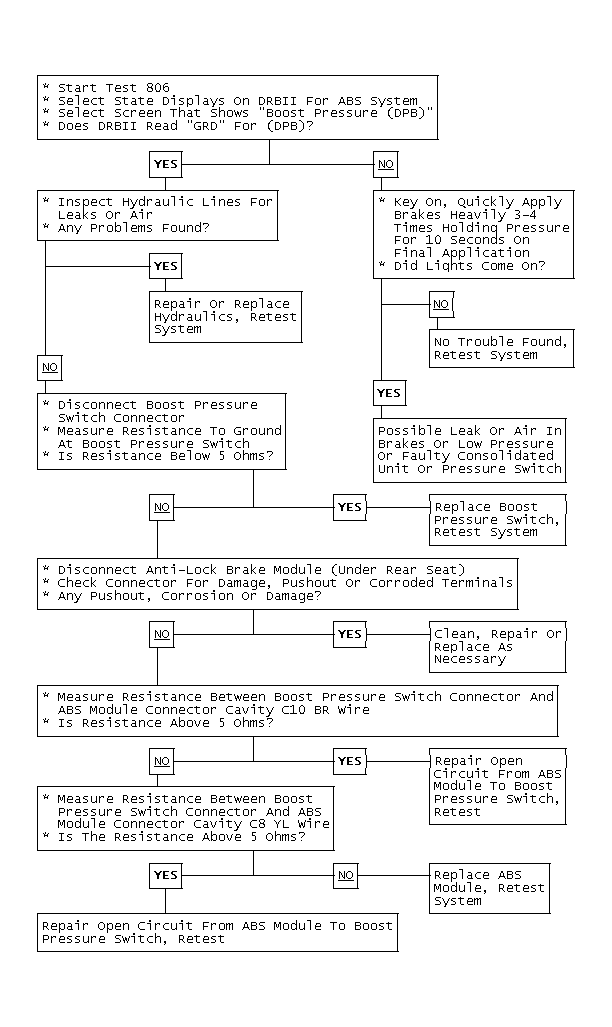

Fig 3: Fault 806: Boost Pressure Fault

GB0010713
