Code 803 - Abs Light Inoperative

Fig 1: ABS Module Connector

G93A45559

Fig 2: Instrument Panel Harness Connector

G93F45562

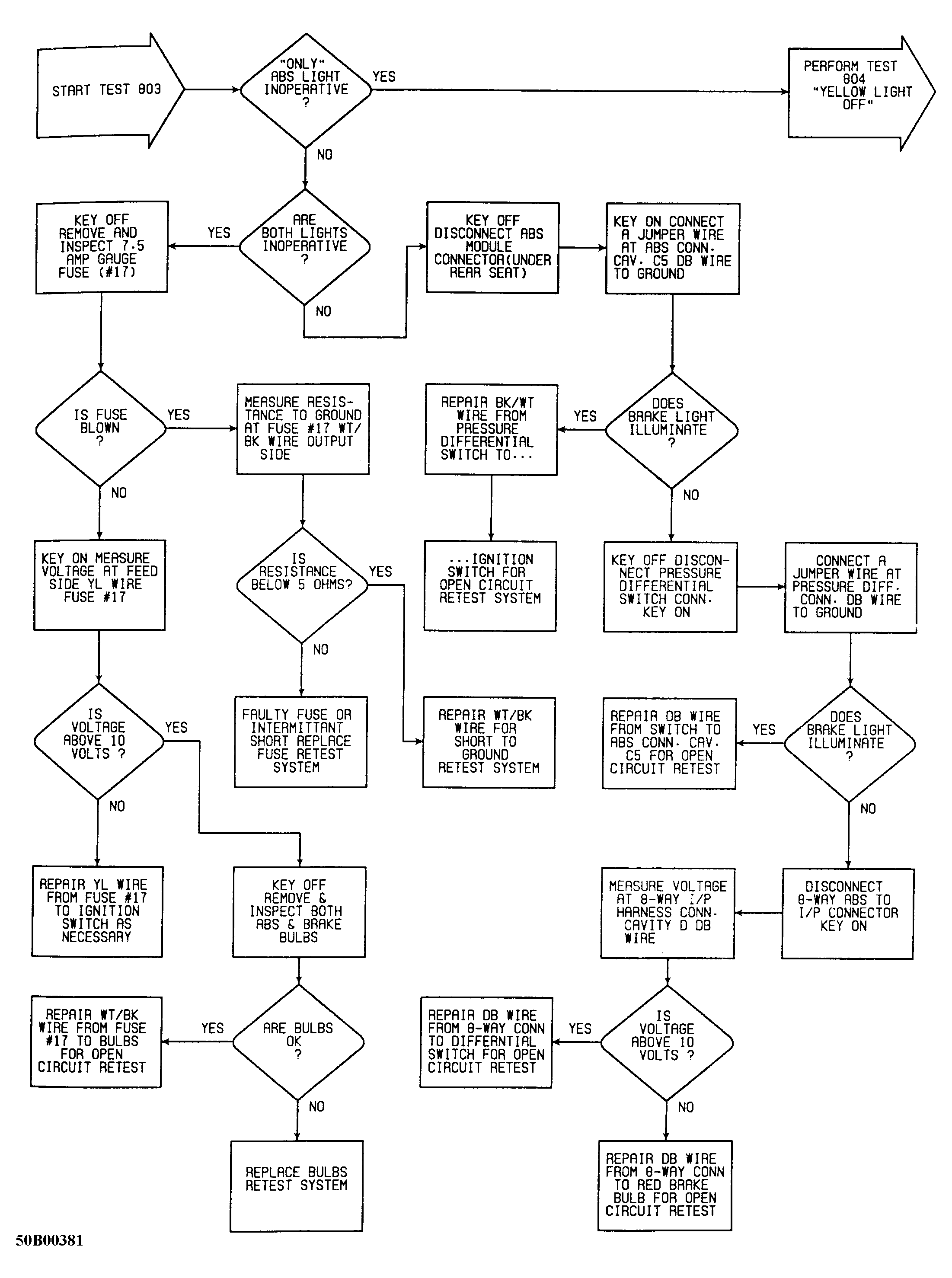

Fig 3: Fault 803: ABS Light Inoperative

G50B00381

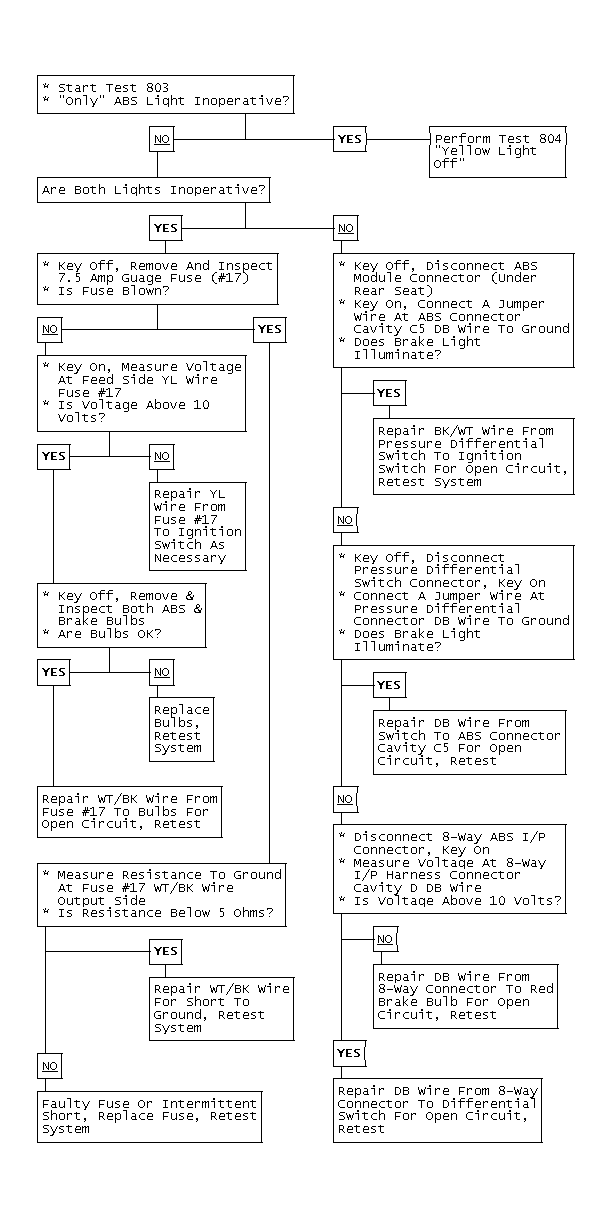

Fig 4: Fault 803: ABS Light Inoperative

GB0010710
