Code 818 - Left Front Wheel Speed Sensor Fault

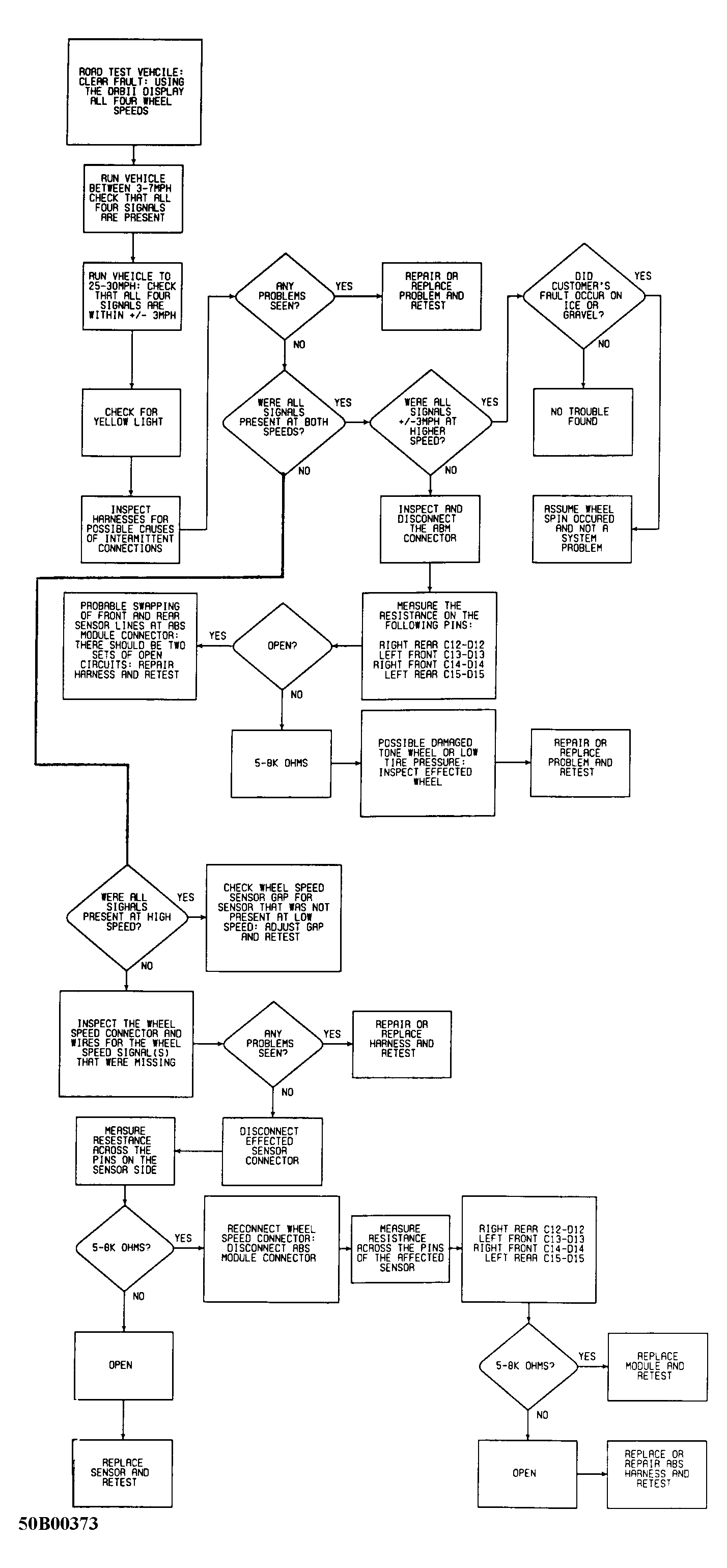

Fig 1: Code 818: Left Front Wheel Speed Sensor Fault

G50B00373

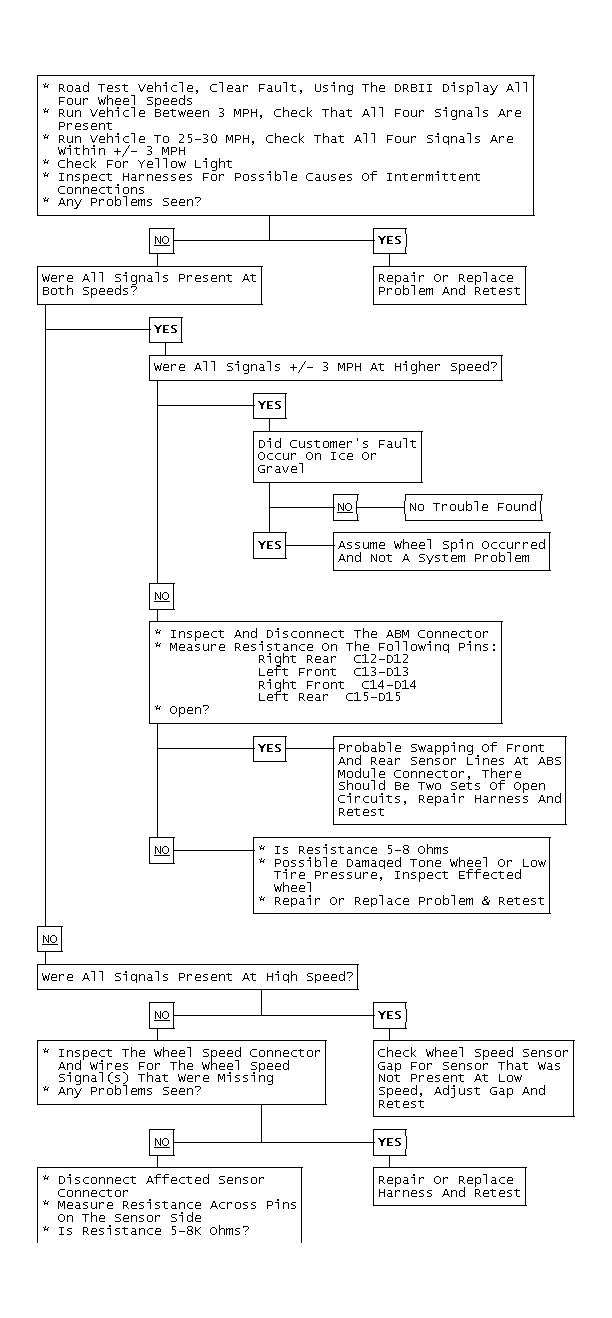

Fig 2: Code 818: Left Front Wheel Speed Sensor Fault

GB0010703
