Code 811 - Relay Fault

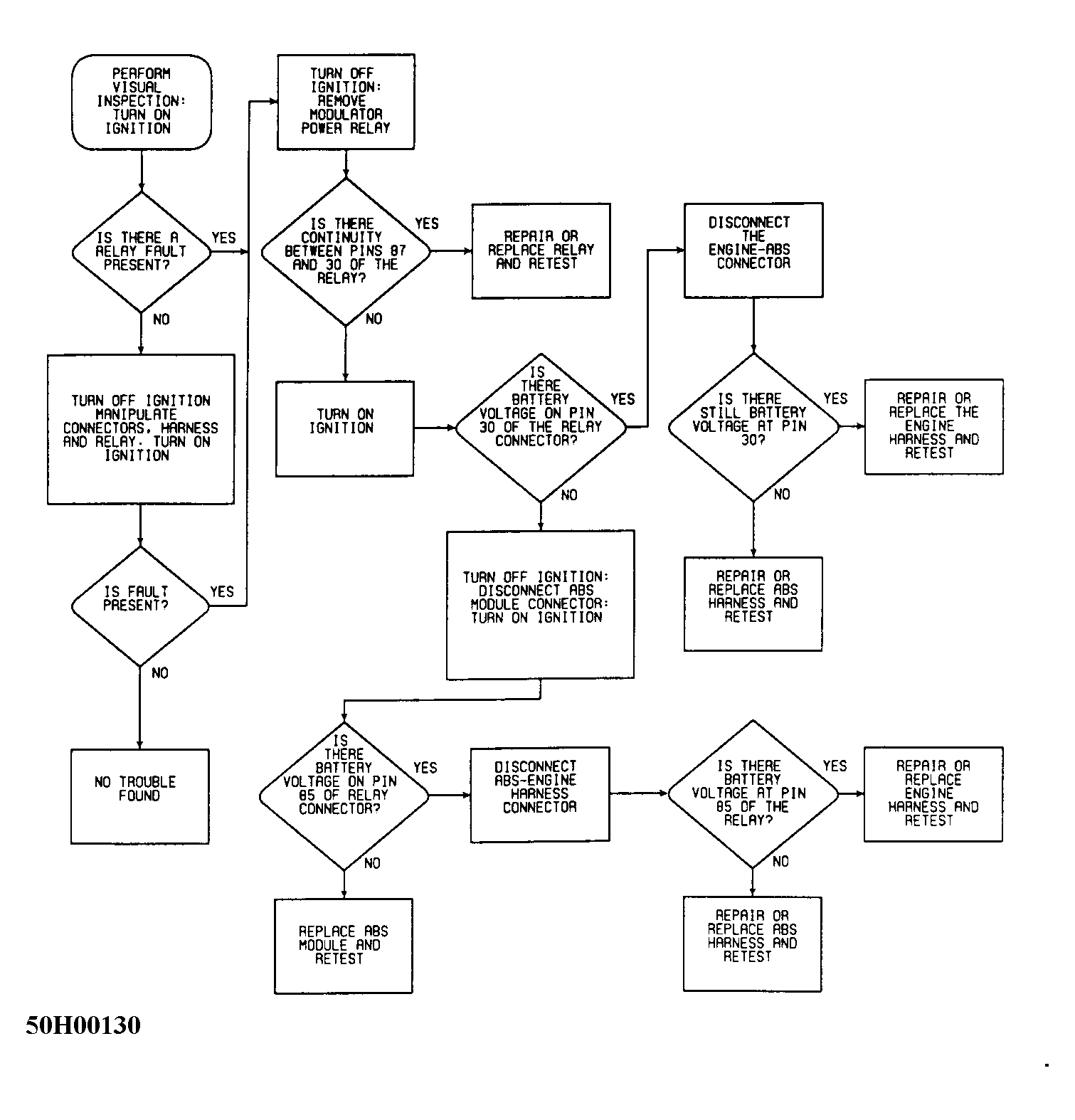

Fig 1: Code 811: Relay Fault

G50H00130

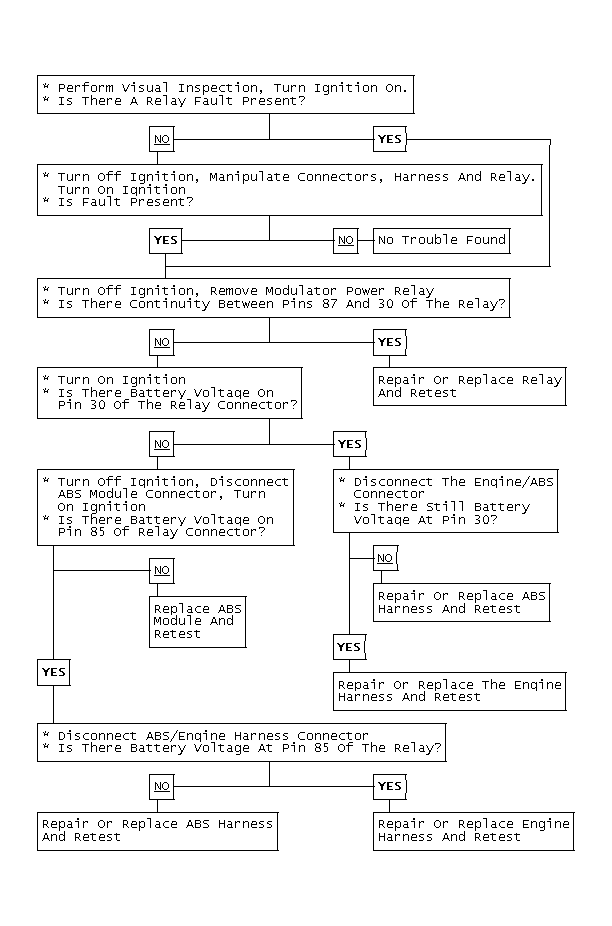

Fig 2: Code 811: Relay Fault

GB0010696
