Home >> Jeep >> 1990 >> Cherokee Laredo, 2D Utility, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> 1989 Trouble Code Charts >> Code 808 - Pressure Modulator Fault

Code 808 - Pressure Modulator Fault

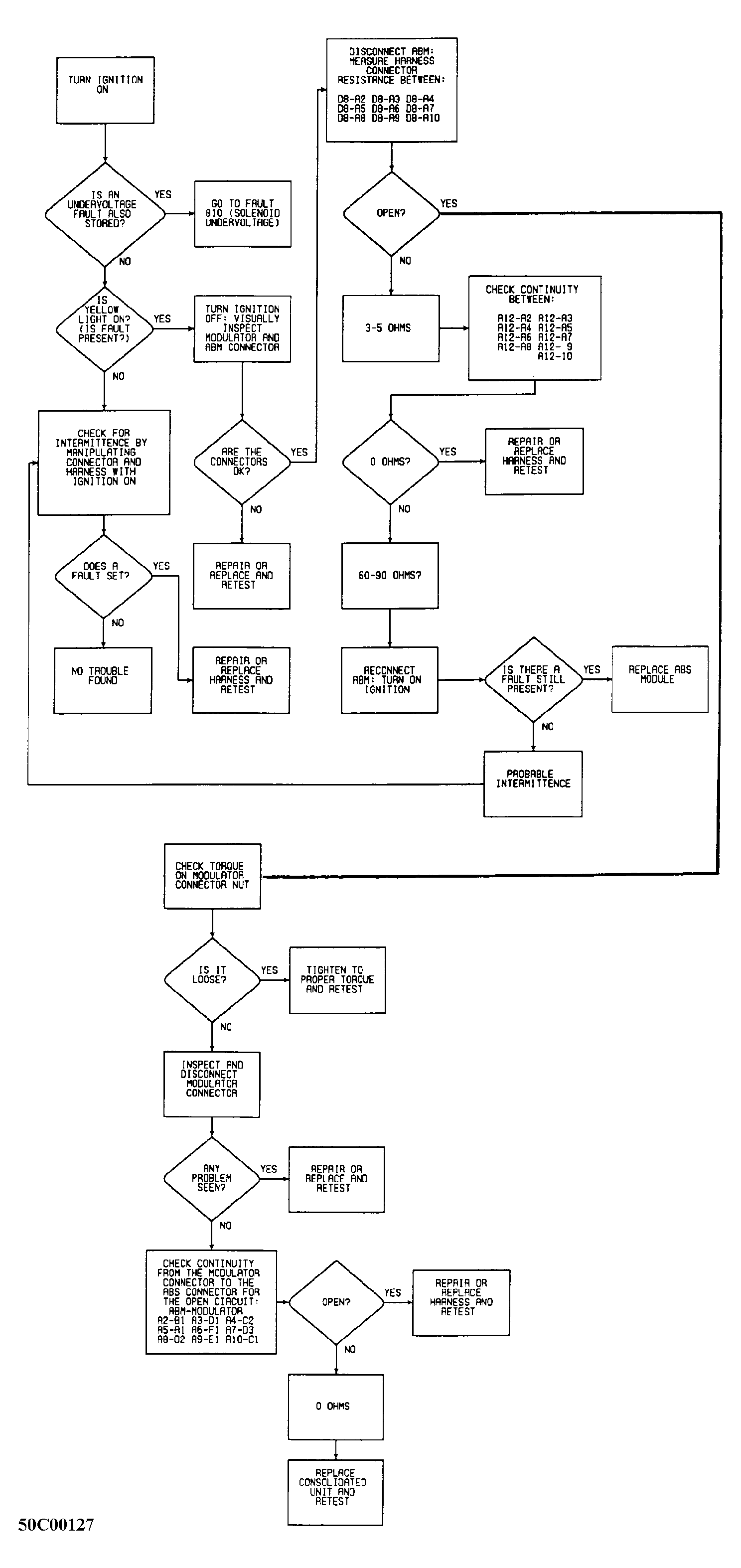

Fig 1: Code 808: Pressure Modulator Fault

G50C00127

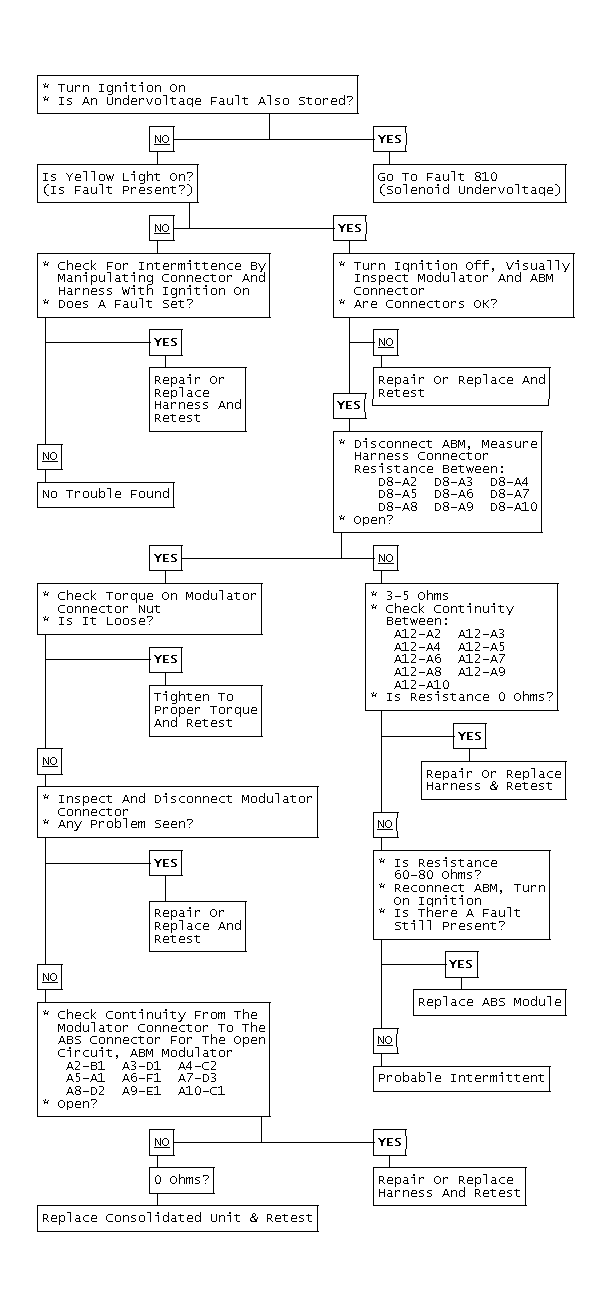

Fig 2: Code 808: Pressure Modulator Fault

GB0010694
