Fault 1044: Fault In Shift Light Circuit (M/T)

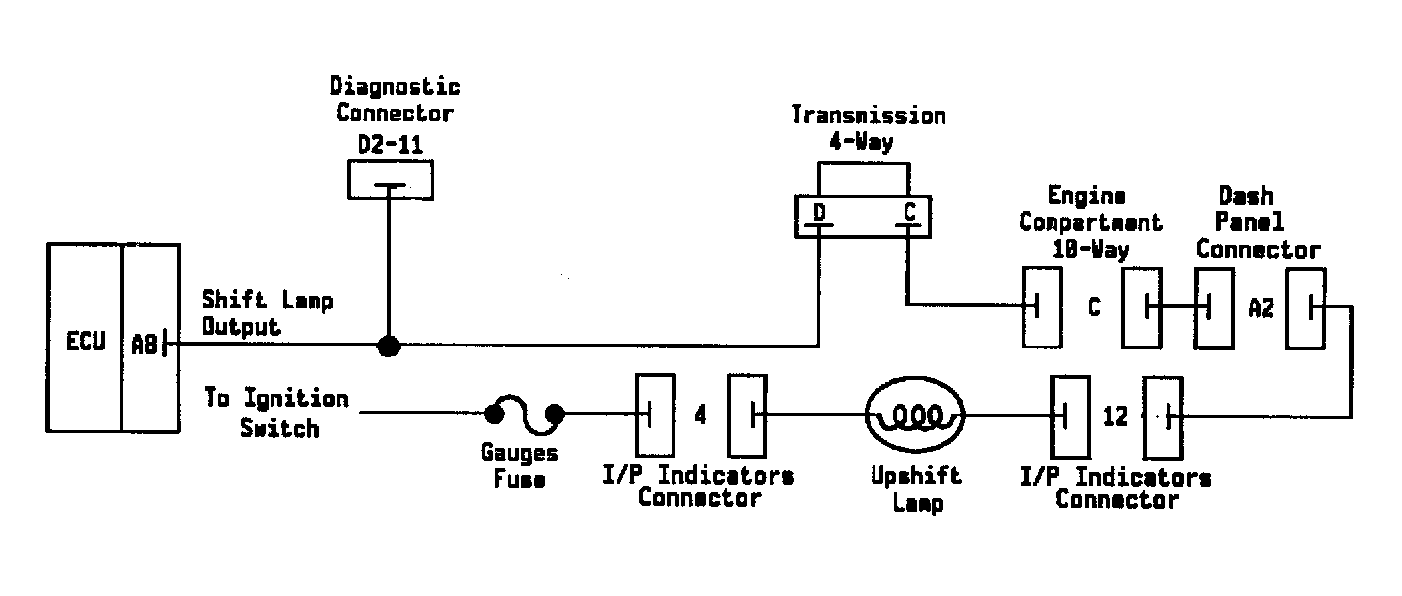

Fig 1: Fault 1044: Circuit Diagram Shift Light Circuit (M/T)

G90H17860

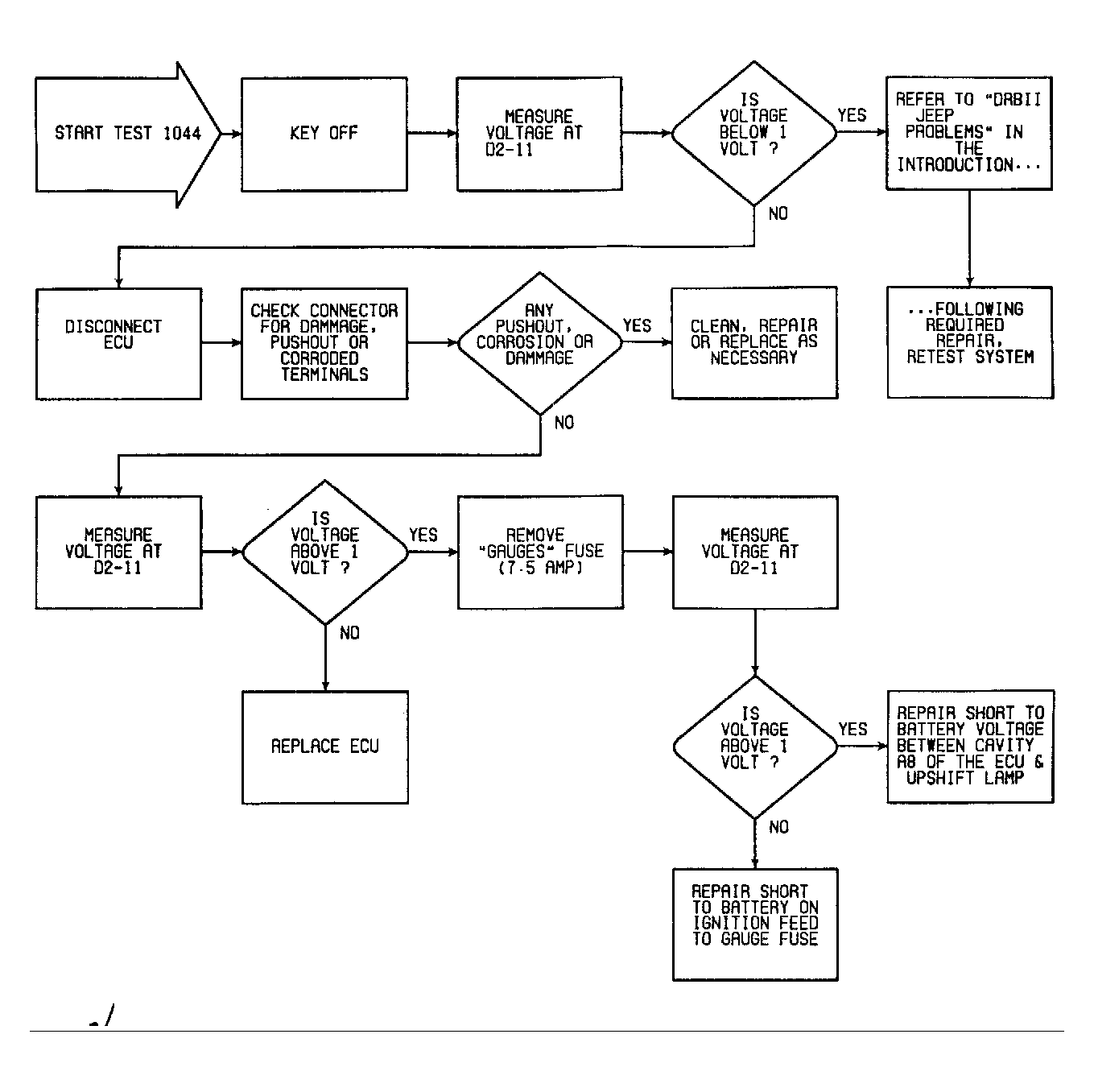

Fig 2: Fault 1044: Flow Chart Shift Light Circuit

G90I17861
