2.5L TBI CEC Testing
>>
Wiring Diagrams
Wiring Diagrams

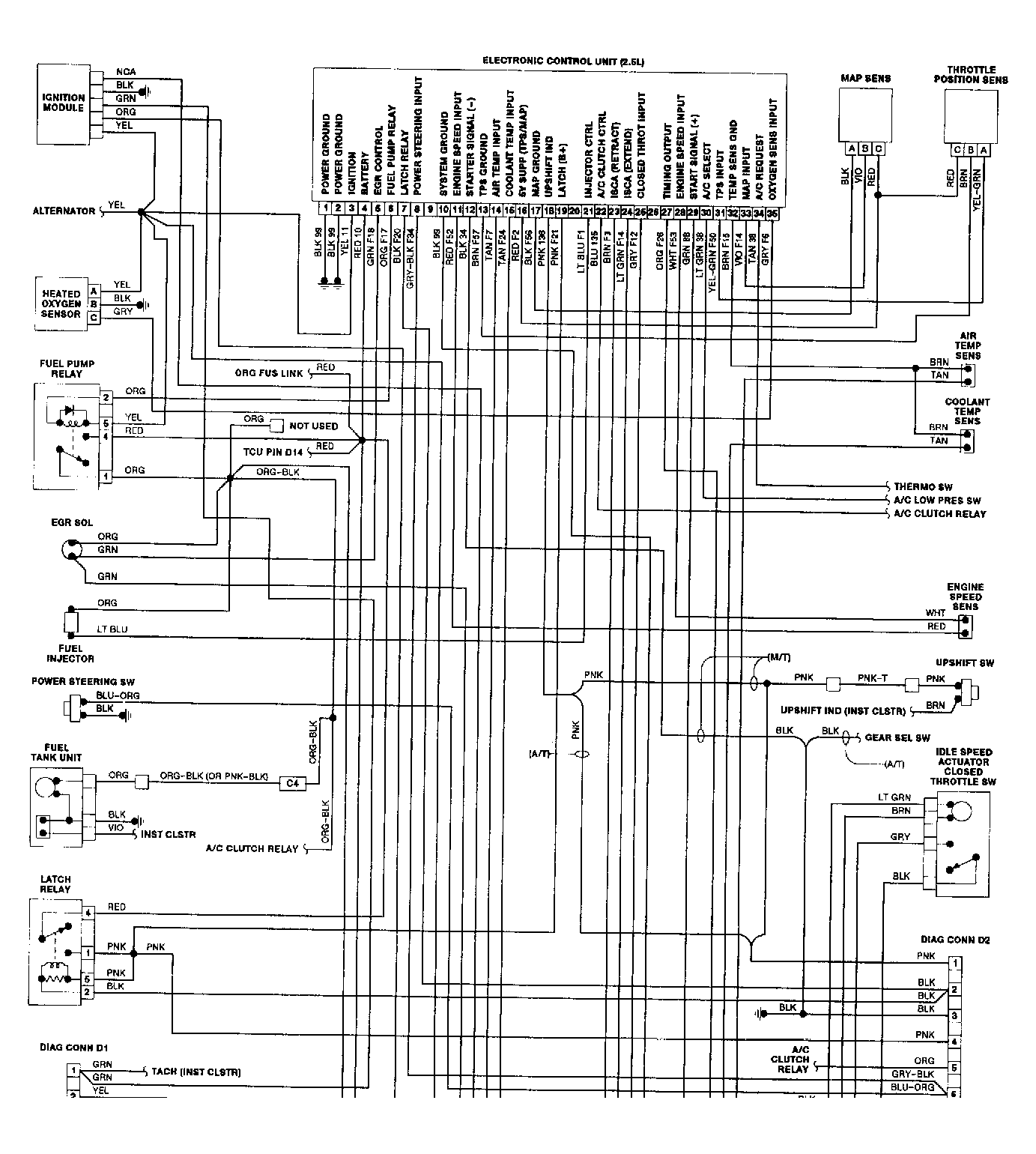

Fig 1: TBI System Wiring Diagram (Except Wrangler)
Courtesy of CHRYSLER MOTORS.

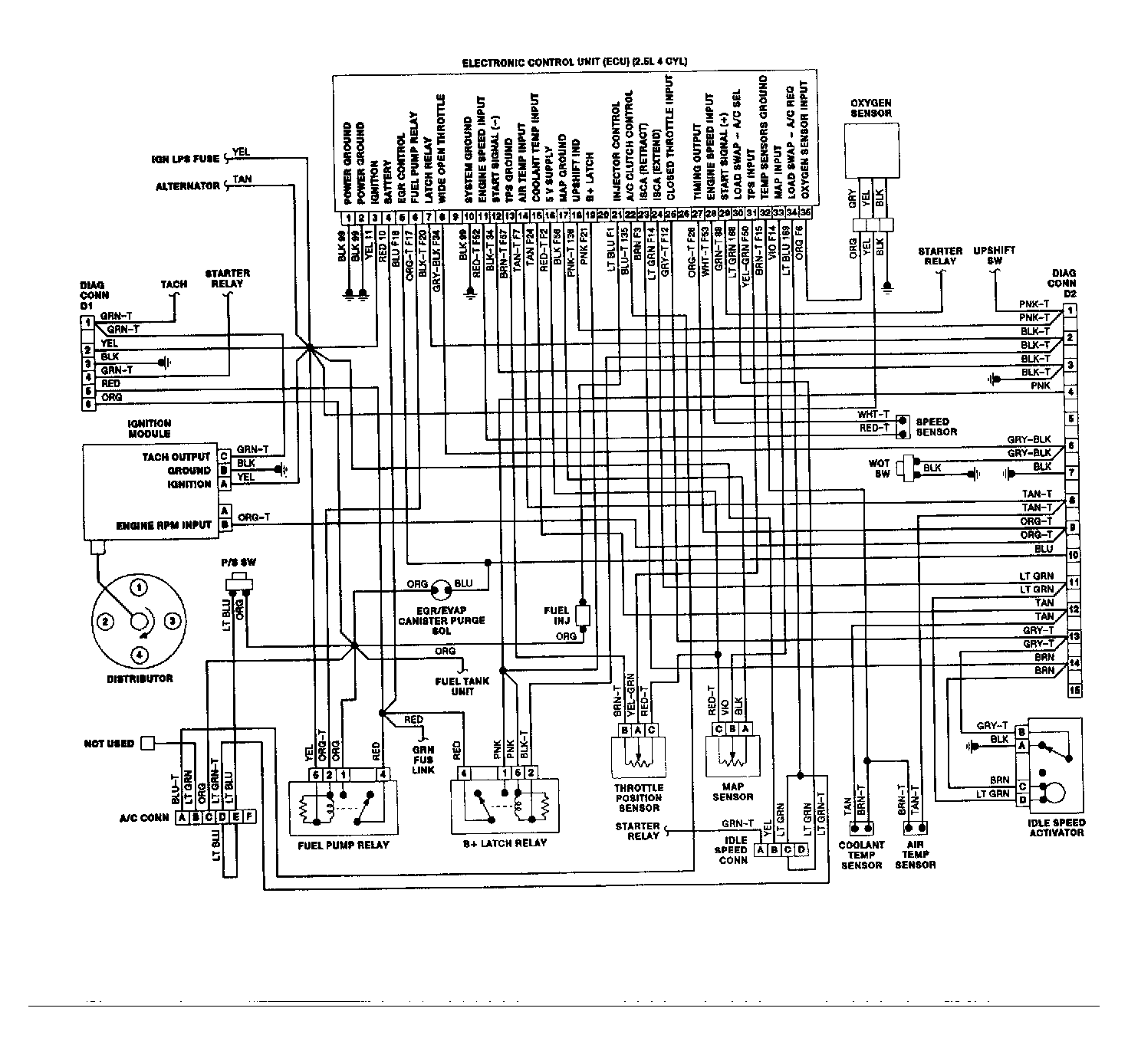

Fig 2: TBI System Wiring Diagram (Wrangler)
Courtesy of CHRYSLER MOTORS.
Courtesy of CHRYSLER MOTORS.
Courtesy of CHRYSLER MOTORS.
