Fault Code 1015 - Fuel Pump Line High

Fig 1: Fuel Pump Circuit Diagram

G120939

Courtesy of CHRYSLER MOTORS.

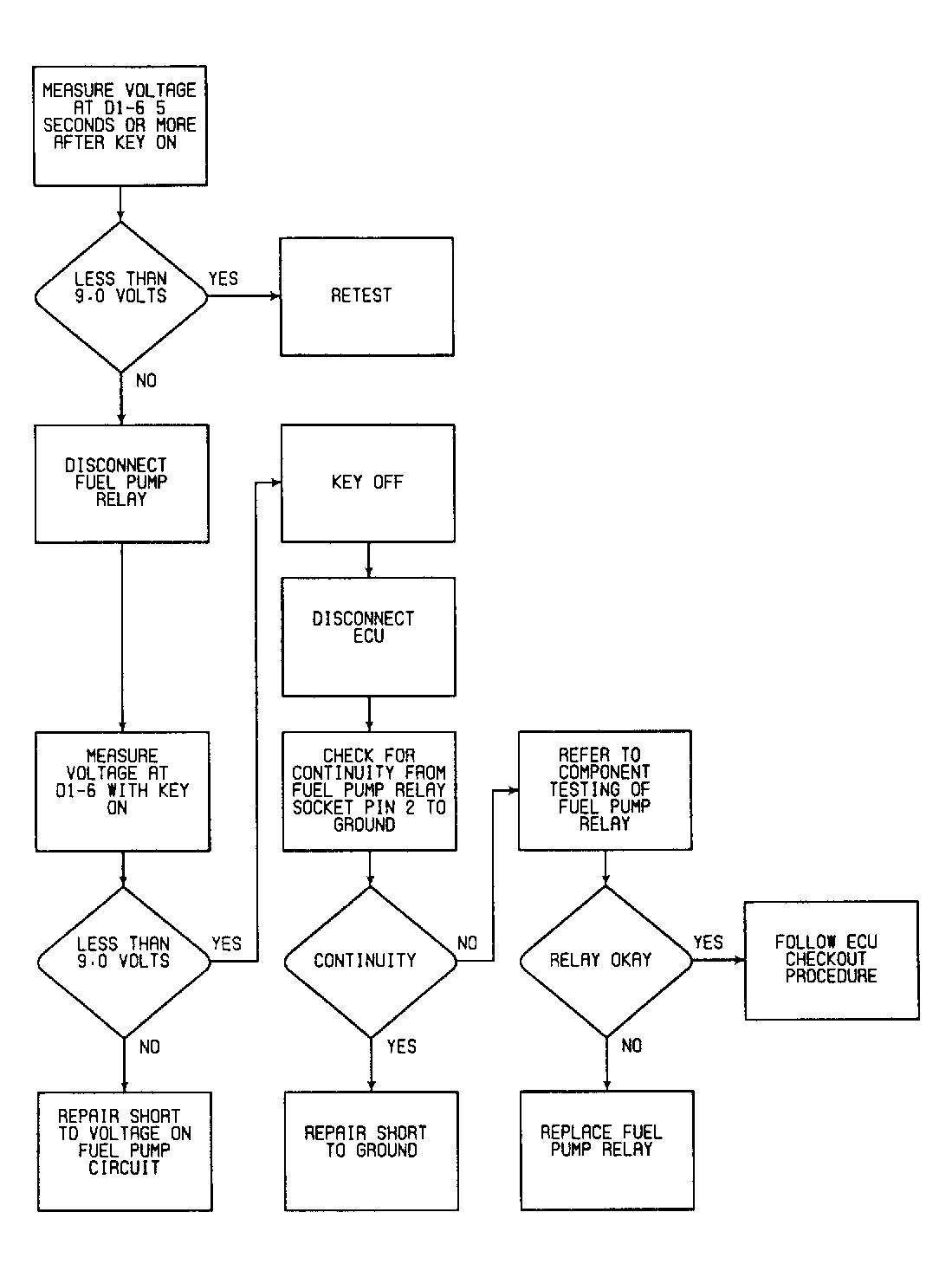

Fig 2: Testing For Fault Code 1015 - Fuel Pump Line High

G120941

Courtesy of CHRYSLER MOTORS.
