Fault Code 1008 - Power Steering Line Low

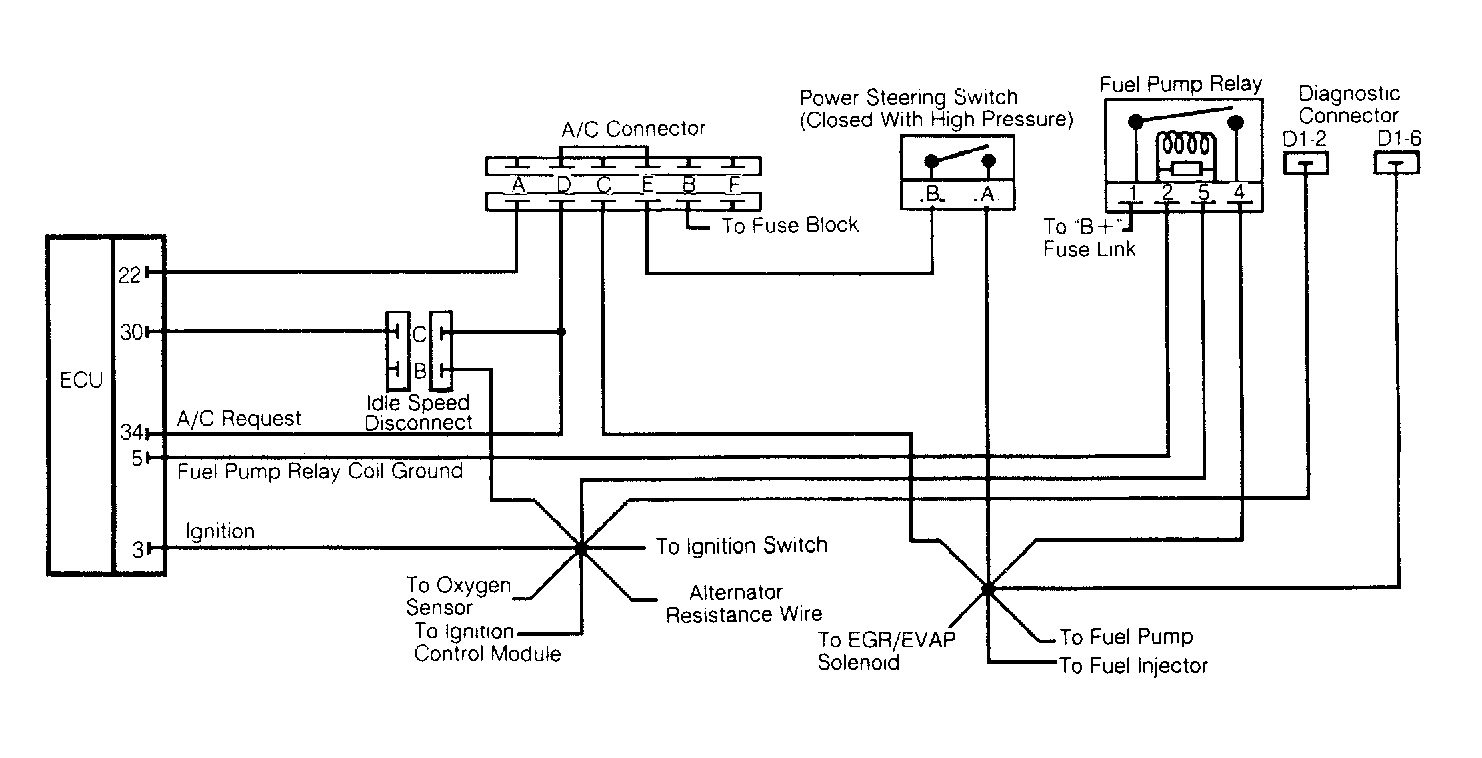

Fig 1: Power Steering System Circuit Diagram

Courtesy of CHRYSLER MOTORS.

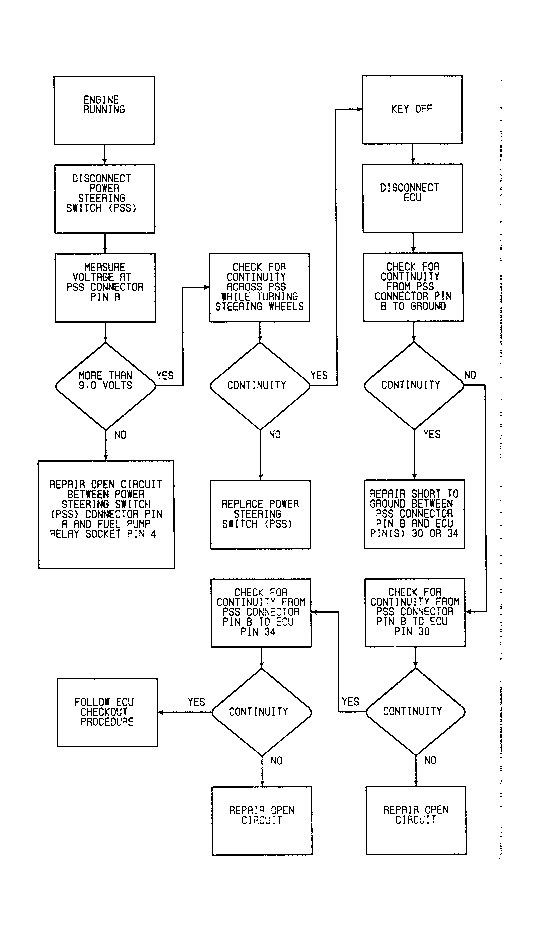

Fig 2: Testing For Fault Code 1008 - Power Steering Line Low

Courtesy of CHRYSLER MOTORS.
