Fault Code 1053 - Change In Map Sensor Reading Out Of Limits

Fig 1: Ignition Circuit Diagram

Courtesy of CHRYSLER MOTORS.

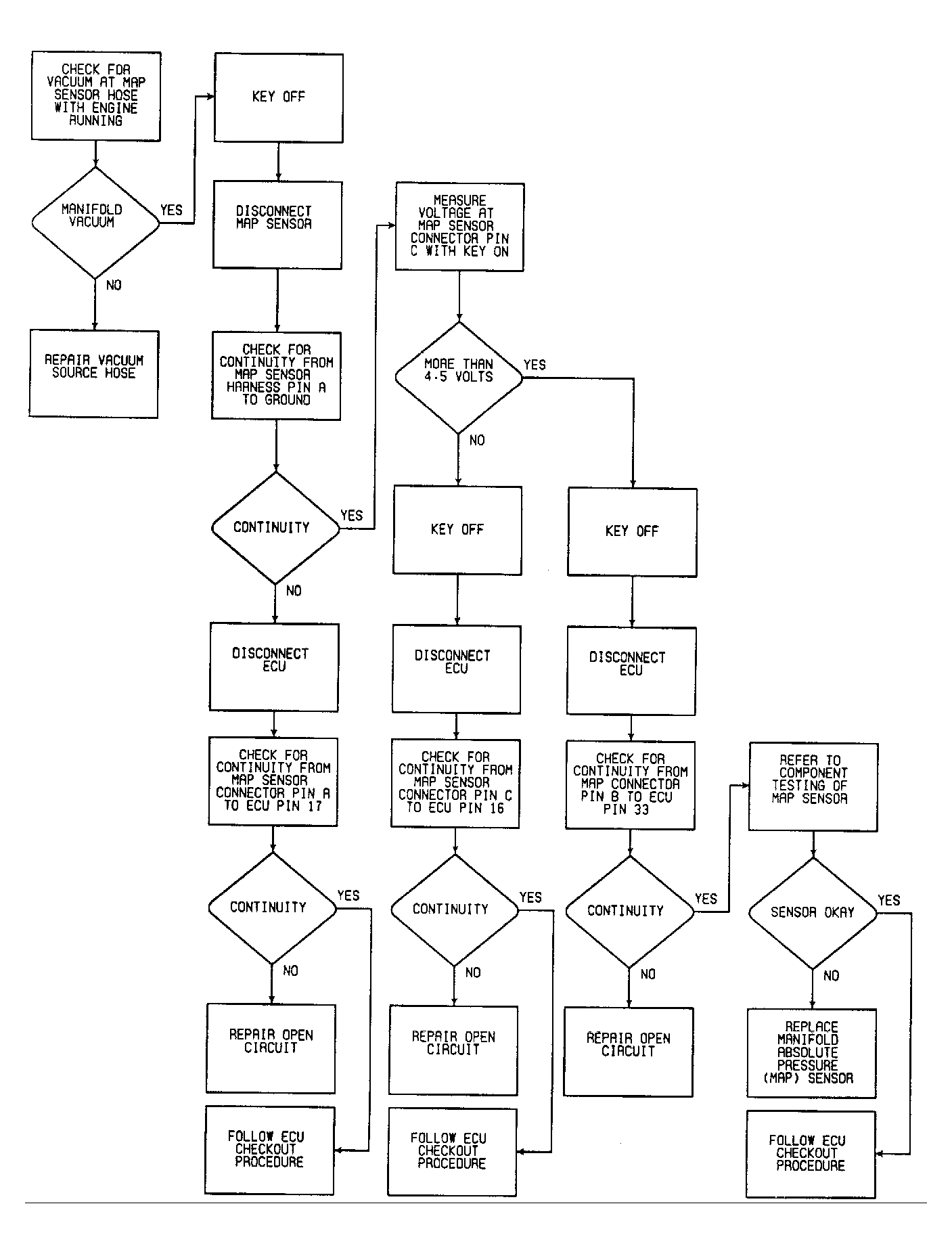

Fig 2: Testing For Fault Code 1053 - Change In Map Sensor Reading Out Of Limits

Courtesy of CHRYSLER MOTORS.
