Fault Code 1052 - Map Sensor Out Of Limits

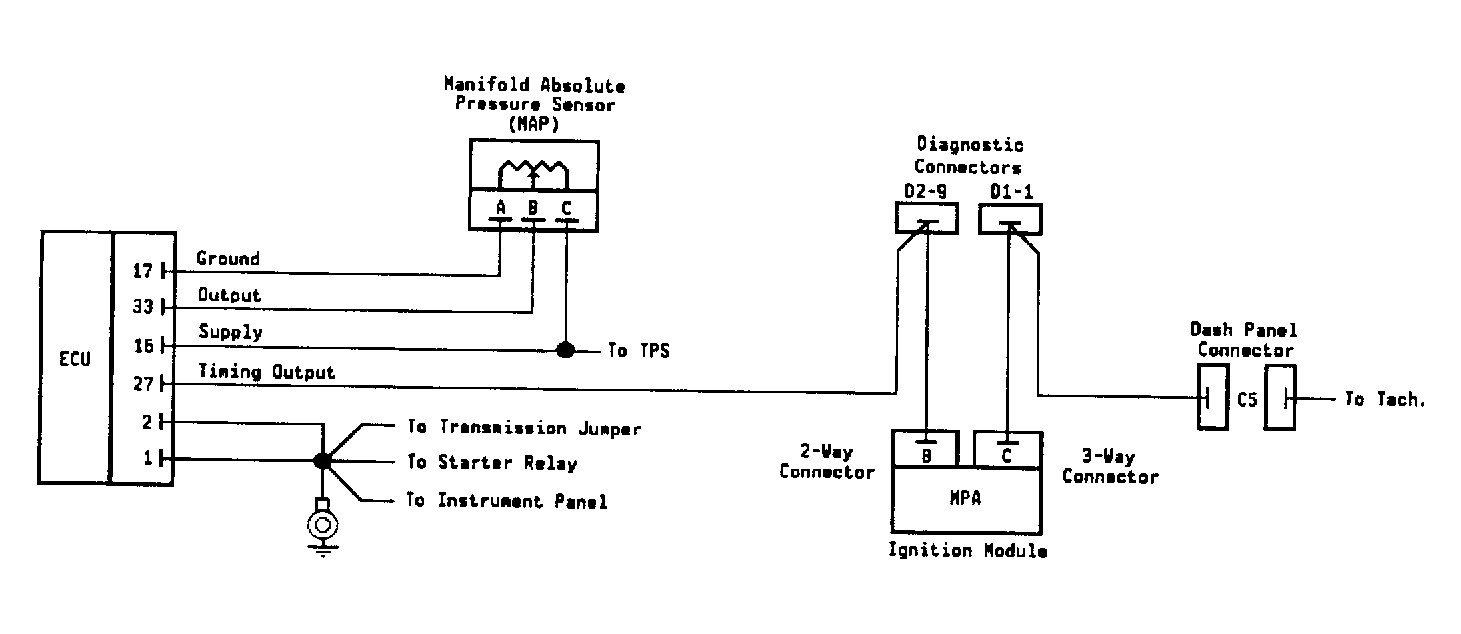

Fig 1: Ignition Circuit Diagram

G120981

Courtesy of CHRYSLER MOTORS.

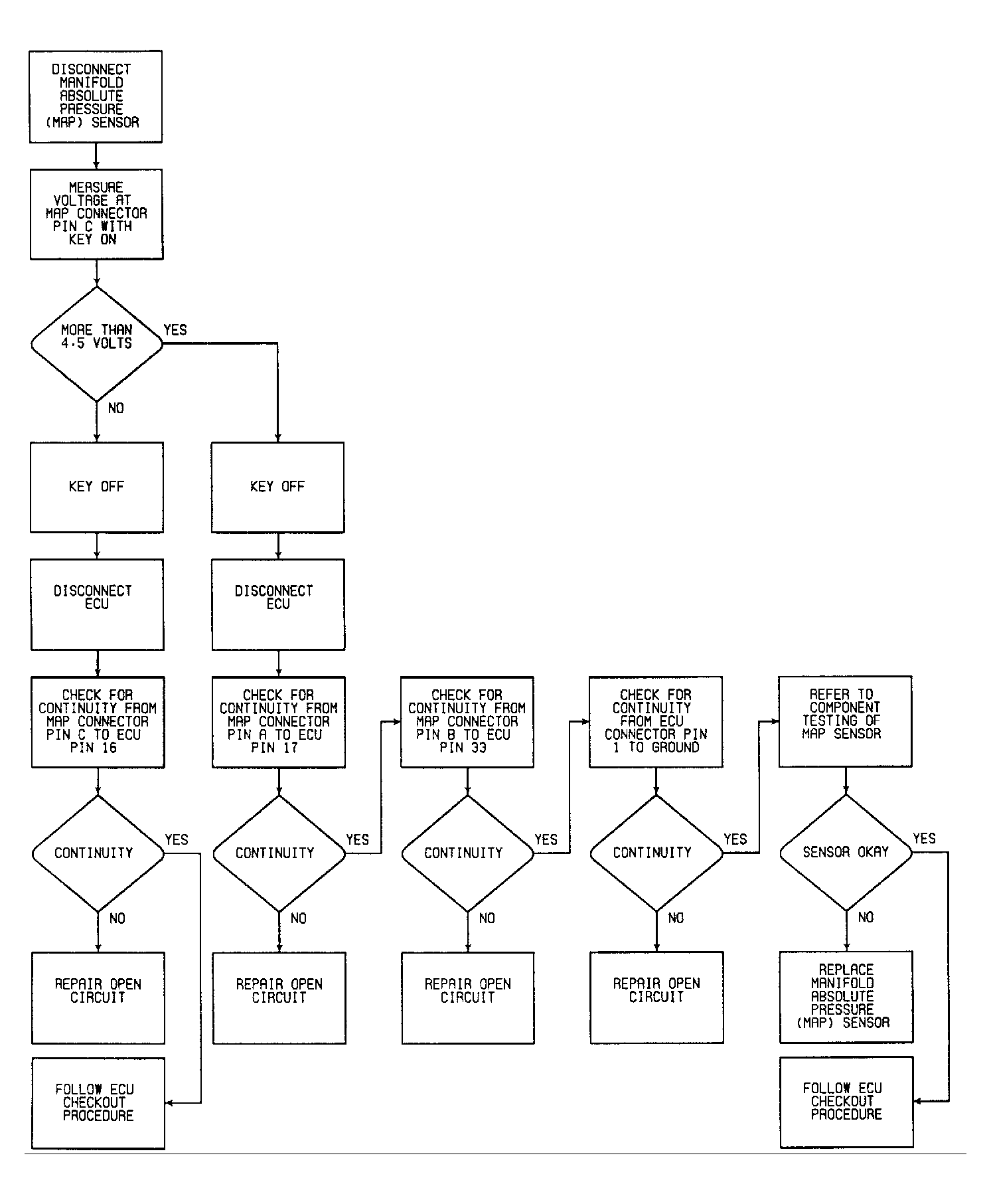

Fig 2: Testing For Fault Code 1052 - Map Sensor Out Of Limits

G120984

Courtesy of CHRYSLER MOTORS.
