Fault Code 1037 - Throttle Position Switch (TPS) Reads Low

Fig 1: Throttle Position Sensor Circuit Diagram

Courtesy of CHRYSLER MOTORS.

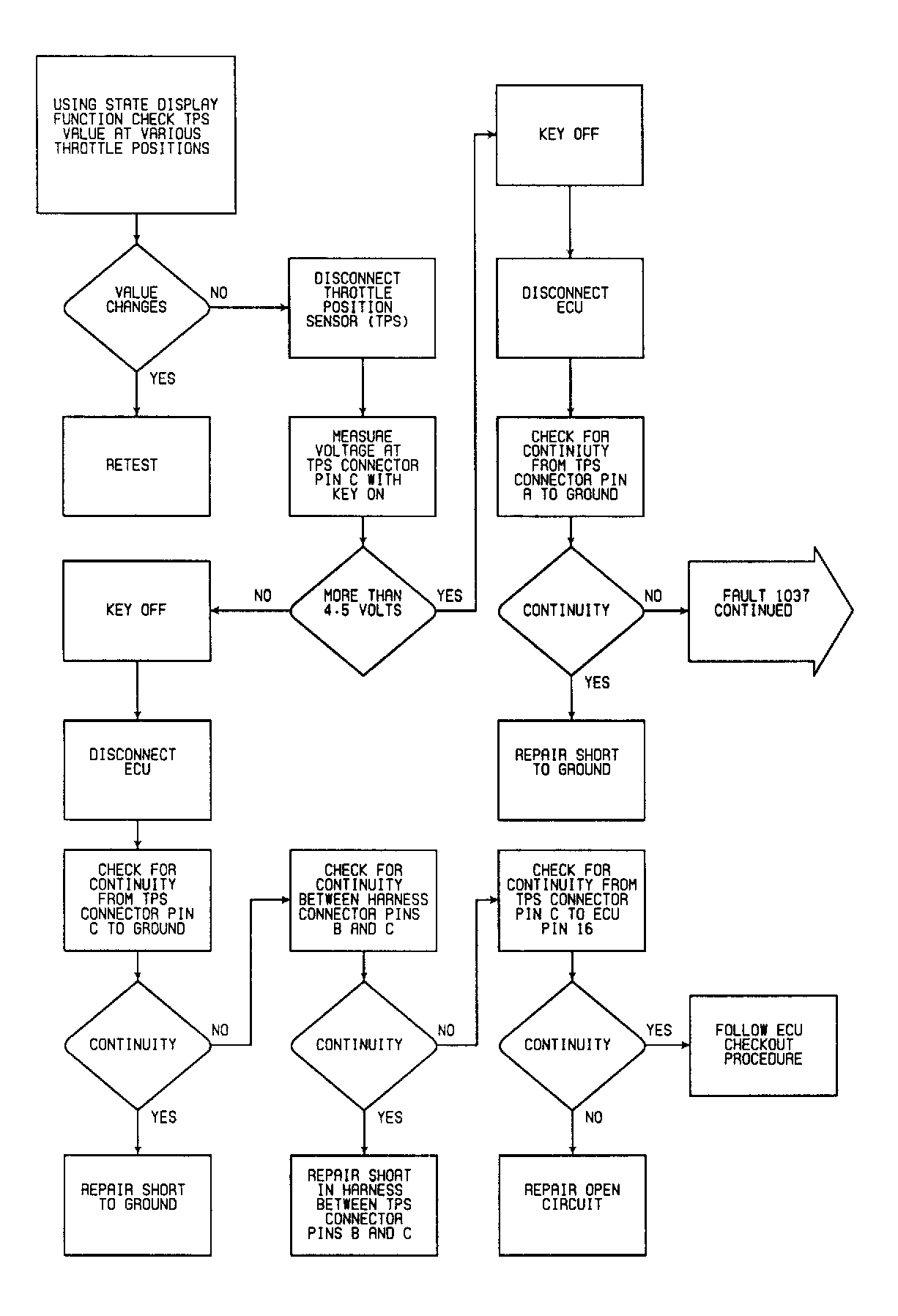

Fig 2: Testing For Fault Code 1037 - TPS Reads Low

Courtesy of CHRYSLER MOTORS.

Fig 3: Testing For Fault Code 1037 - TPS Reads Low (Cont.)

Courtesy of CHRYSLER MOTORS.
