Fault Code 1022 - Start Line Low

Fig 1: ECU, Starting Circuit Wiring Diagram

G120950

Courtesy of CHRYSLER MOTORS.

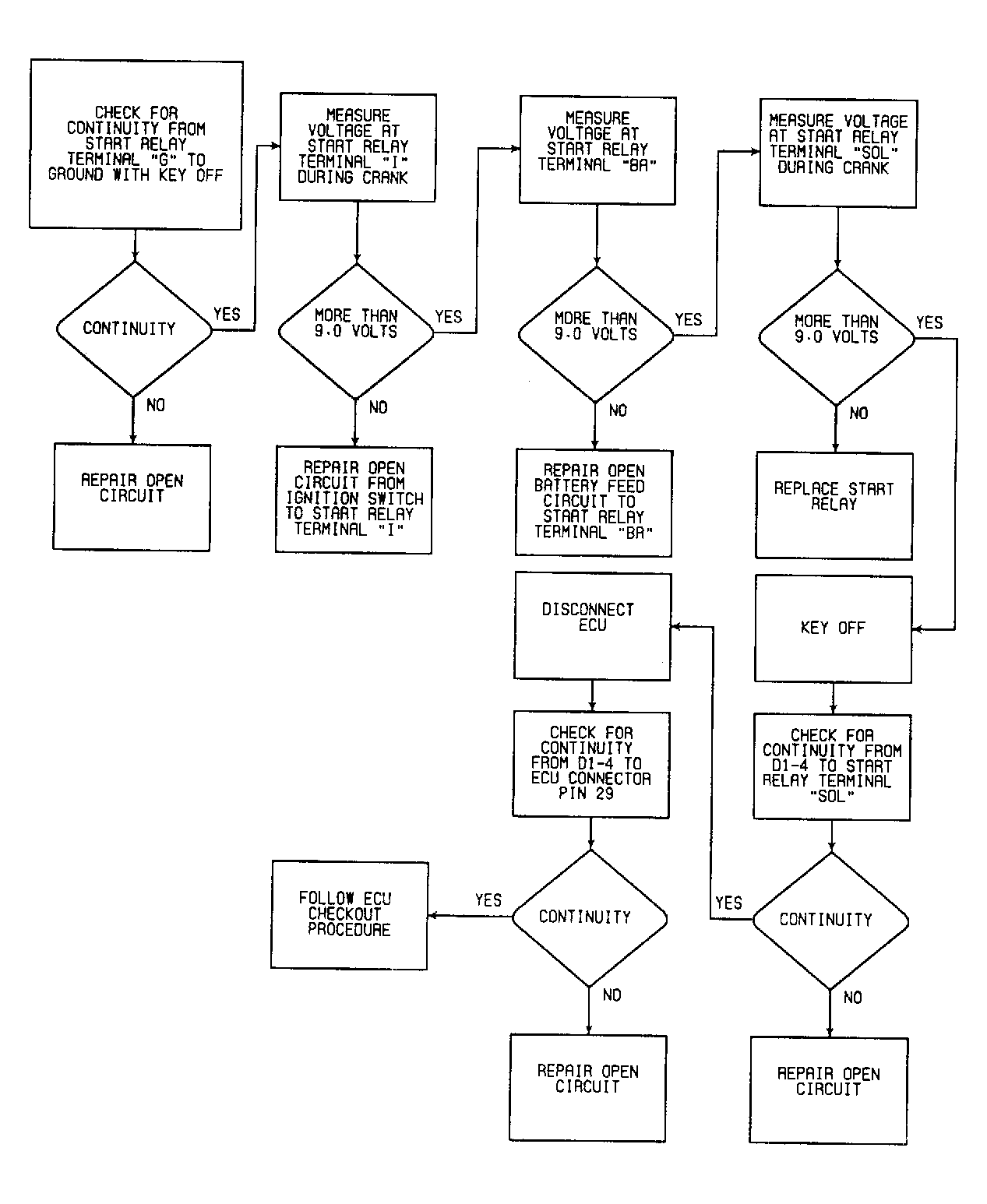

Fig 2: Testing For Fault Code 1022 - Start Line Low

G120951

Courtesy of CHRYSLER MOTORS.
