Fault Code 1005 - Sensor Ground Line Out Of Limits

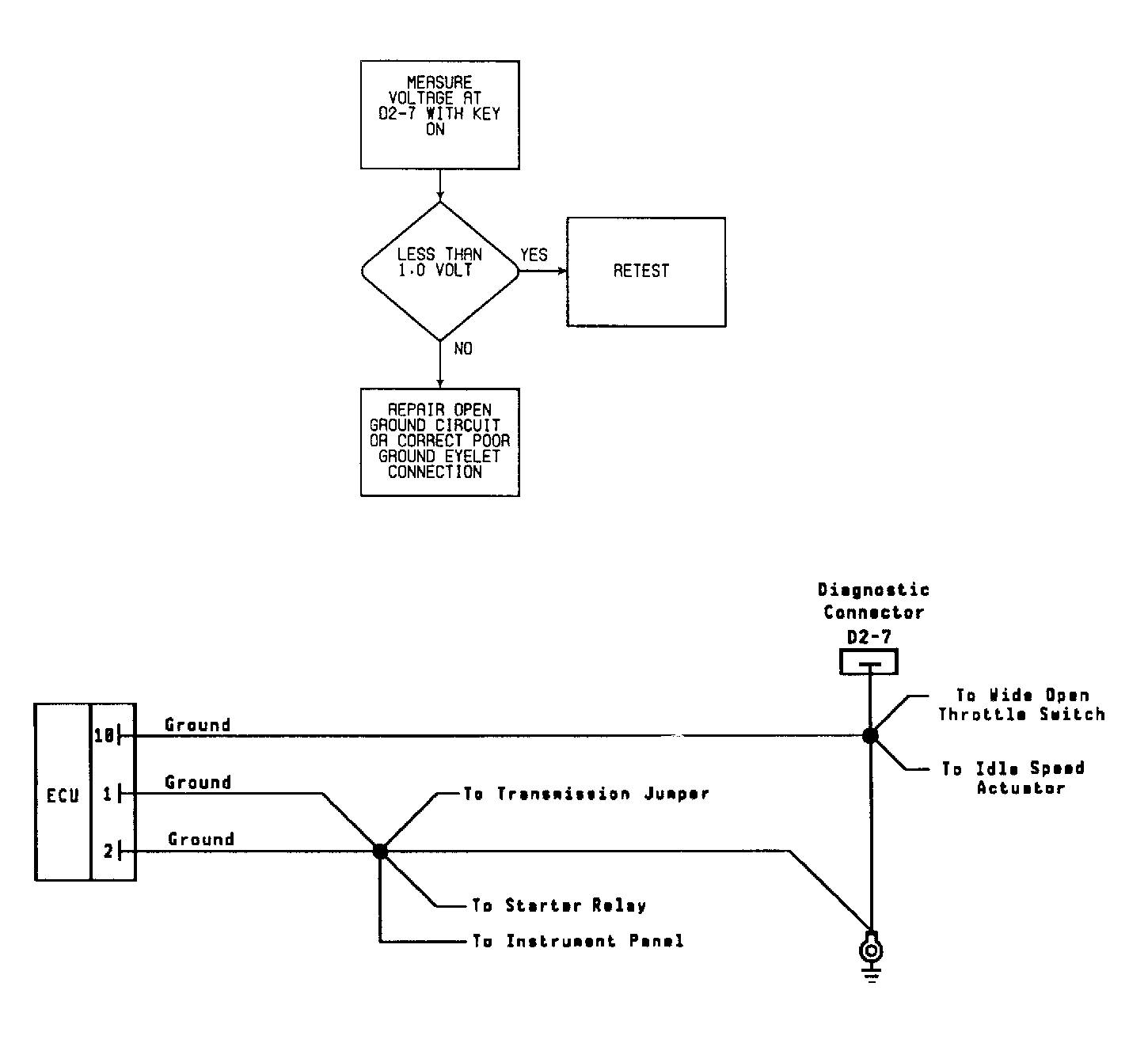

Fig 1: Testing For Fault Code 1005 - Sensor Ground Line Out Of Limits

G120928

Courtesy of CHRYSLER MOTORS.
