Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Circuit Breakers |
On fuse block. See Figure
. |
| Cruise Control In-Line Fuse |
Under left side of dash, near brake pedal. |

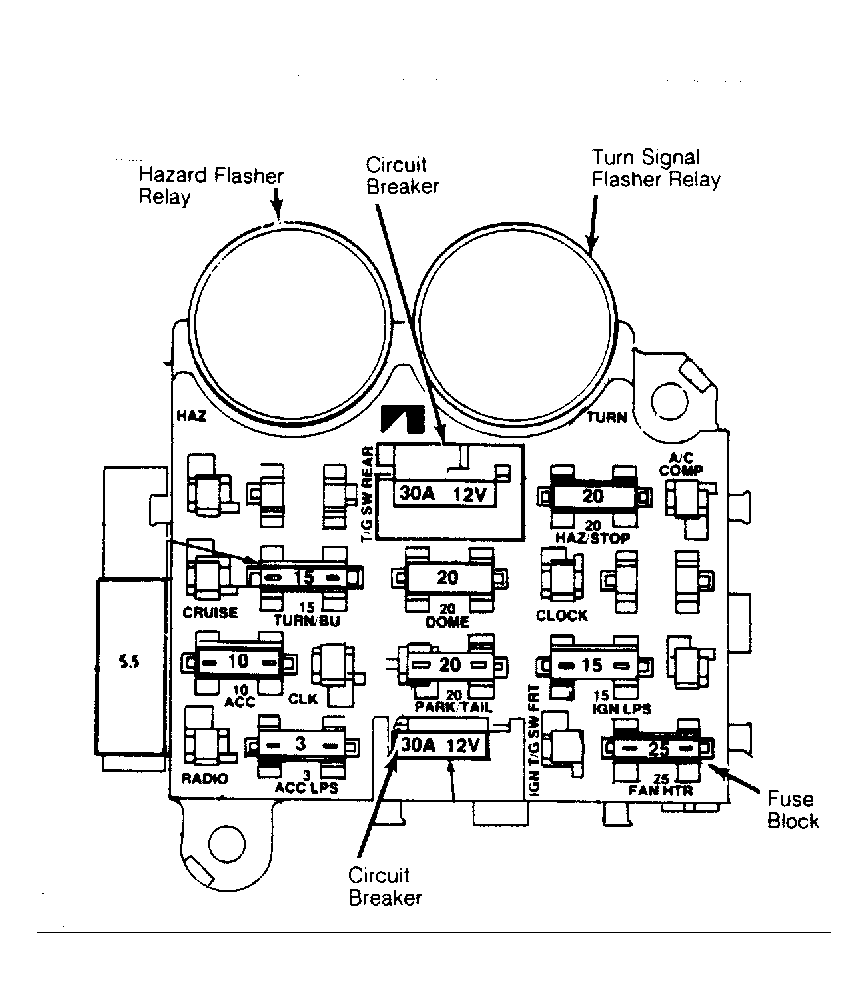

| Fuse Block |
Under left side of dash. See Figure
. |
| Fusible Link |
At starter solenoid, on right front wheelwell. |
