Test 6: Manual Transmission Upshift

This test checks upshift indicator light function on vehicles with manual transmissions.

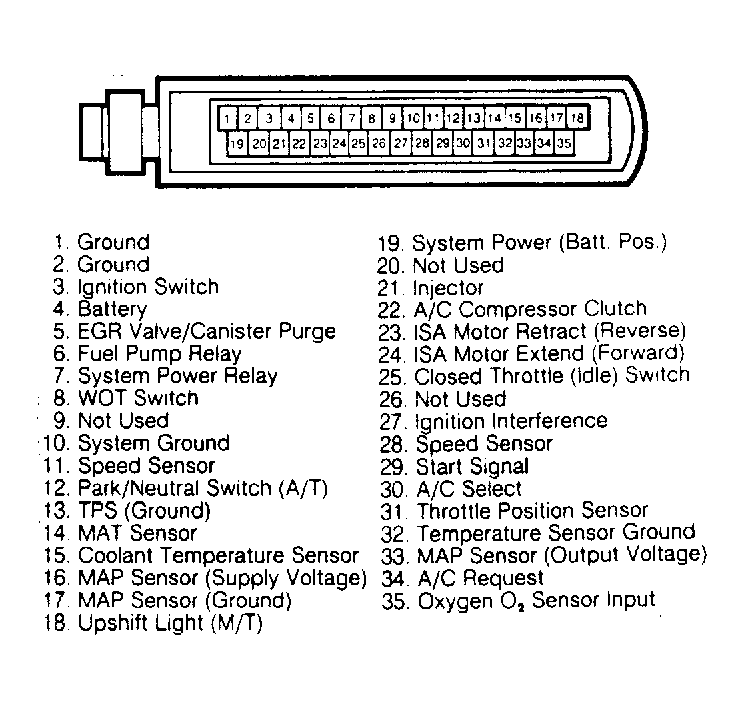

Fig 1: Jeep/Renix Fuel Injection ECU Connector

G72670

Courtesy of CHRYSLER MOTORS.
