Wiring Diagrams

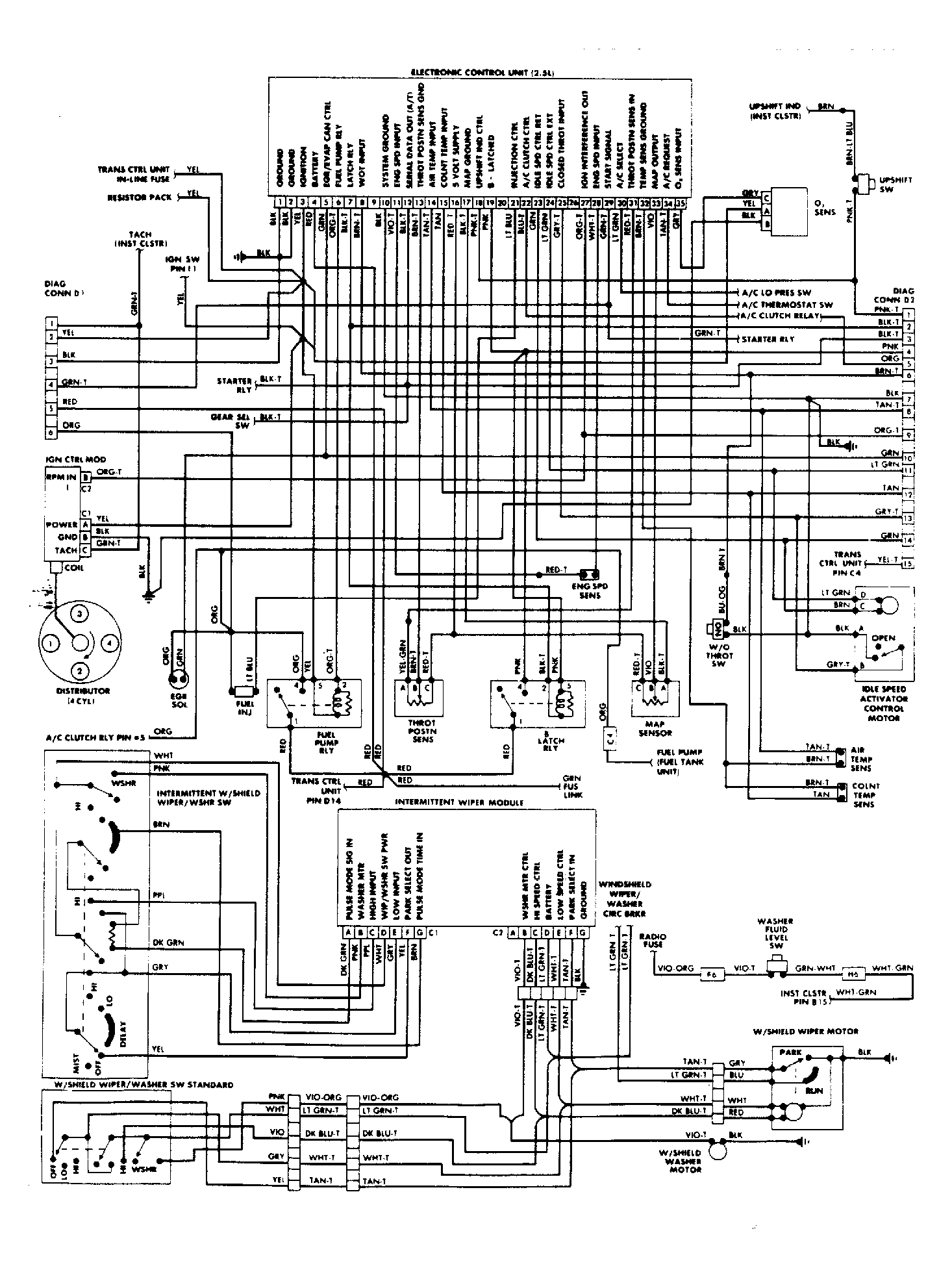

Fig 1: Cherokee, Comanche & Wagoneer Throttle Body Fuel Injection System Wiring Diagram

G12568

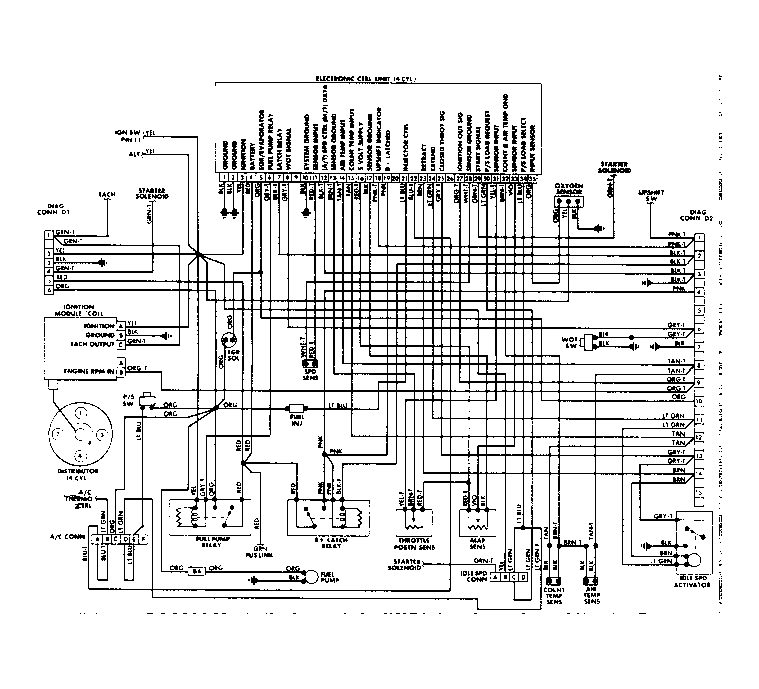

Fig 2: Wrangler Throttle Body Fuel Injection System Wiring Diagram

G12569
