Wiring Diagrams

Fig 1: Comanche Engine Control System Wiring Diagram

G12425

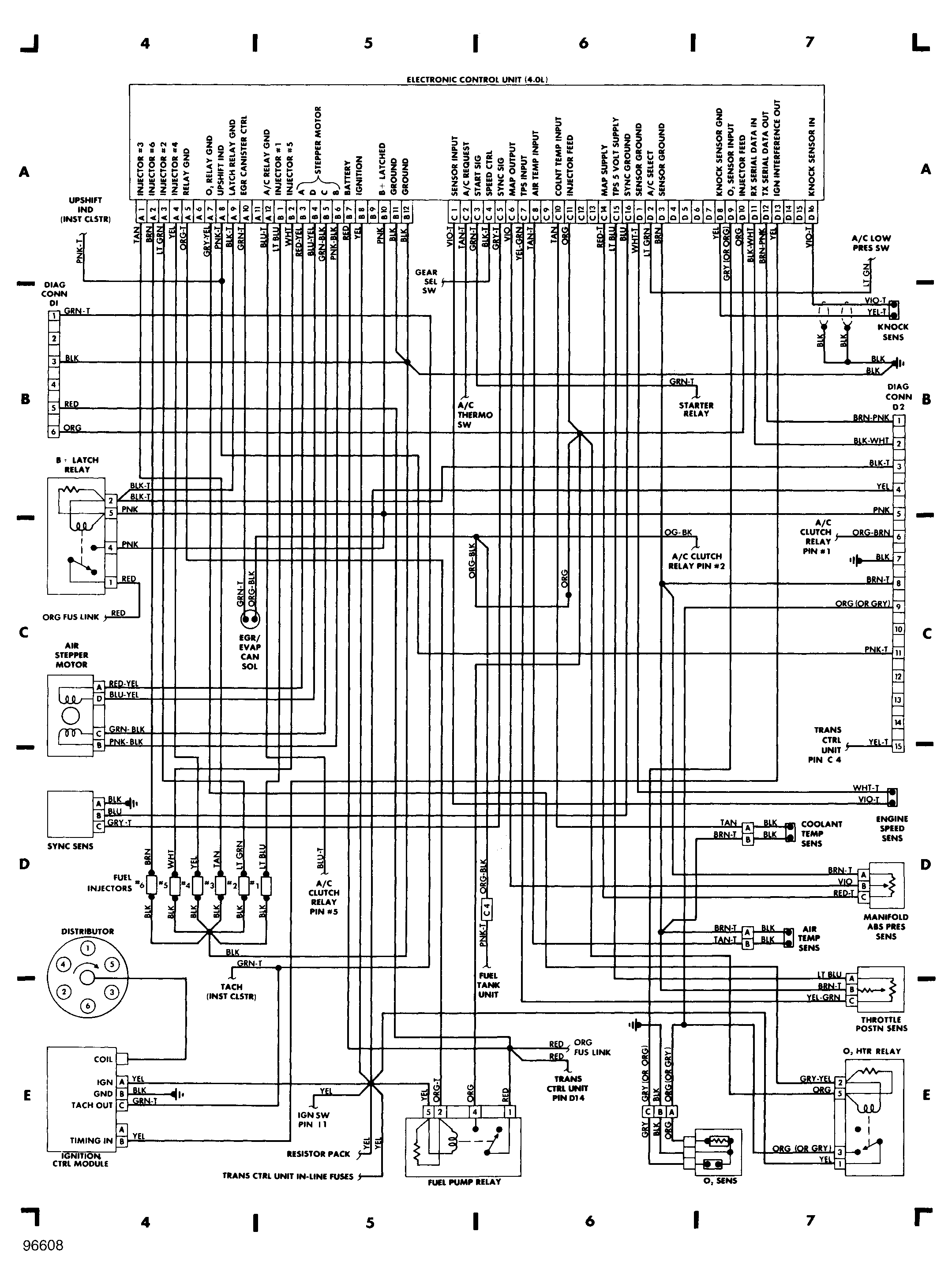

Fig 2: Cherokee Engine Control System Wiring Diagram

G96608
