Float Level (Bench Adjustment)

Remove air horn. Hold float lip gently against needle. See Fig 1 . Place a straightedge across float bowl and measure float level. If adjustment is needed, release float. Bend float tip to obtain correct clearance. Reinstall air horn.

NOTE: Avoid damaging synthetic rubber tip. DO NOT bend lip while float is resting against needle.

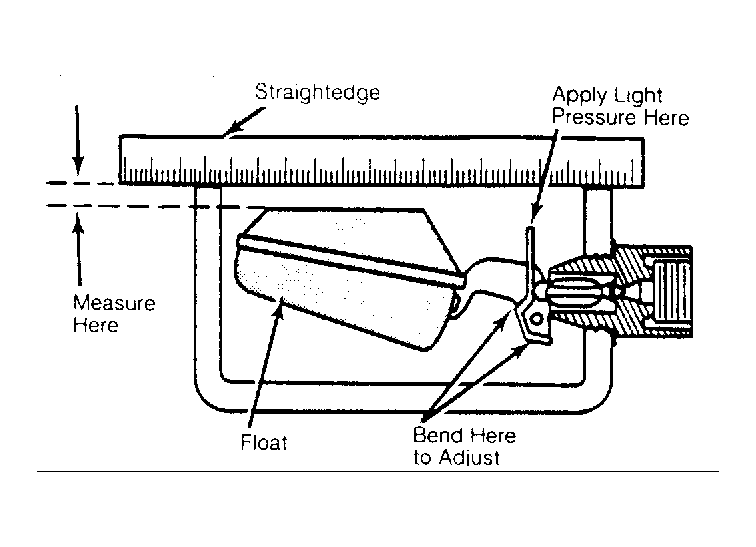

Fig 1: Float Level Adjustment Hold finger against fulcrum pin retainer.
