Test No. 10 - Sole-Vac Vacuum Switching Test

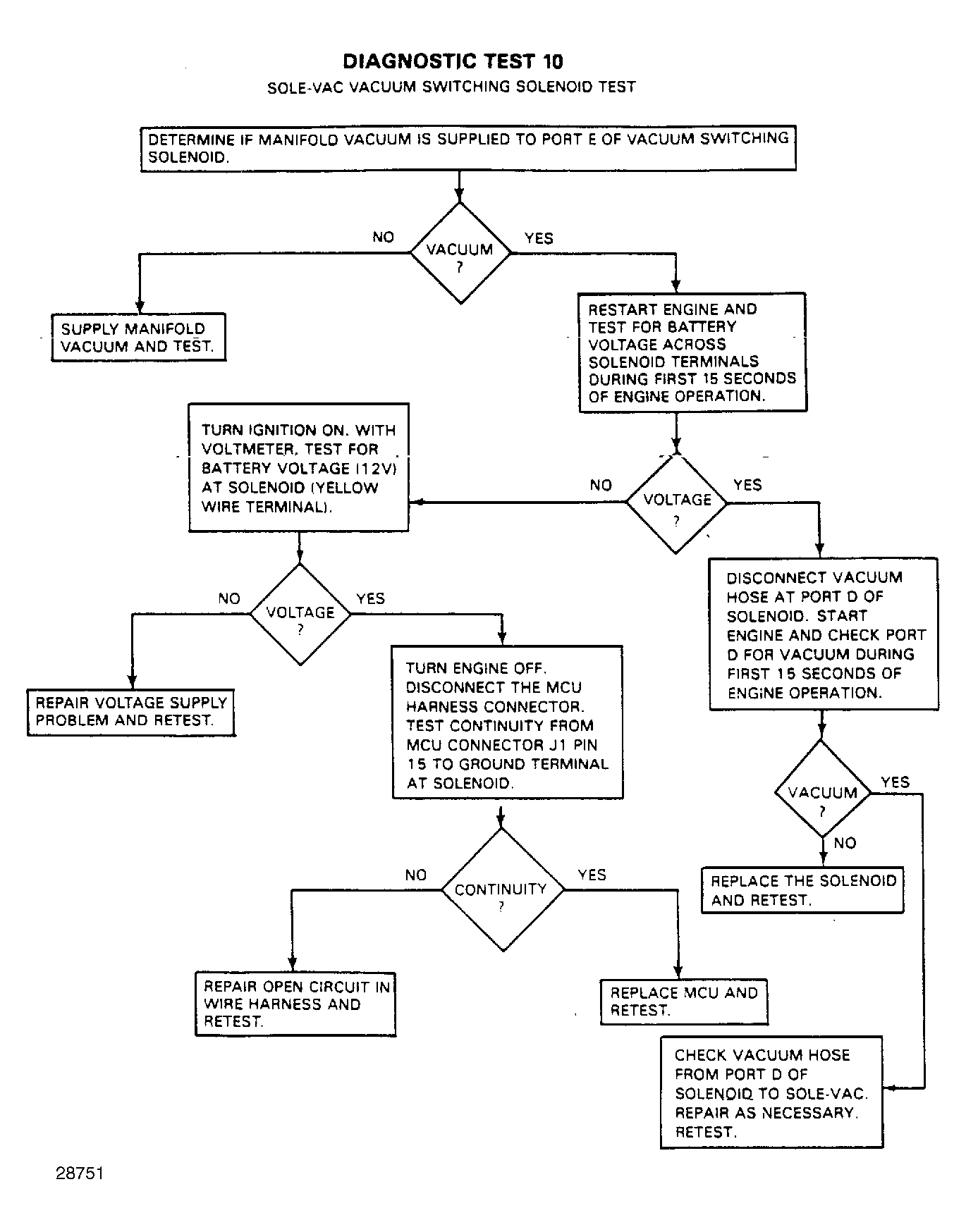

Fig 1: Test No. 10, Sole-Vac Vacuum Switching Test

G28751
