Wiring Diagrams

Fig 1: 1987 Comanche Engine Control System Wiring Diagram

G12425

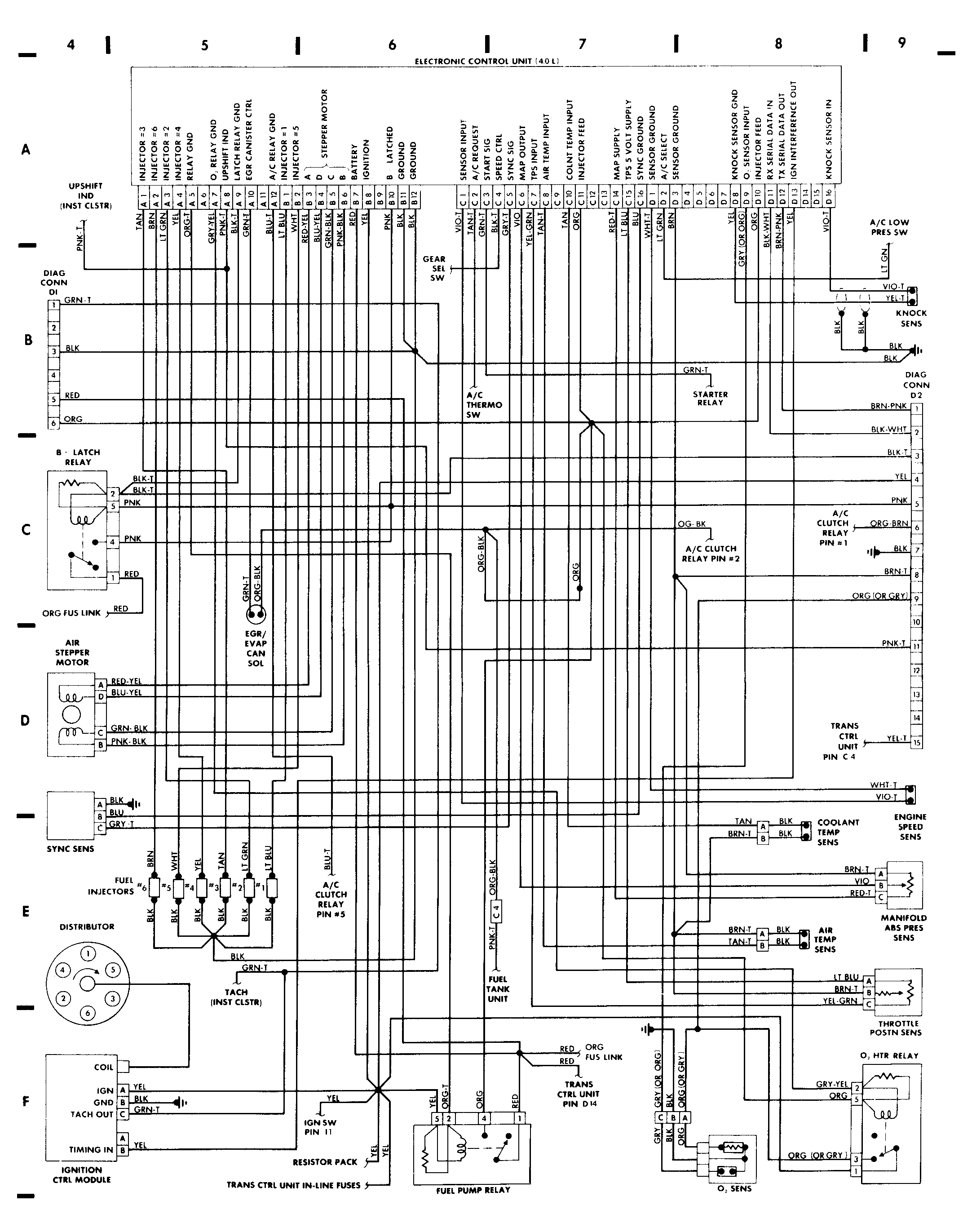

Fig 2: 1987 Cherokee Engine Control System Wiring Diagram

G95644
