Air Control Switch

Air control is a dual function control. With knob pushed in, no air will enter heater. When pulled to first position ("HEAT"), knob opens a door in fresh air inlet to allow fresh air into heater housing. When pulled completely out ("VENT"), it opens 2 additional doors, allowing fresh air to enter passenger compartment.

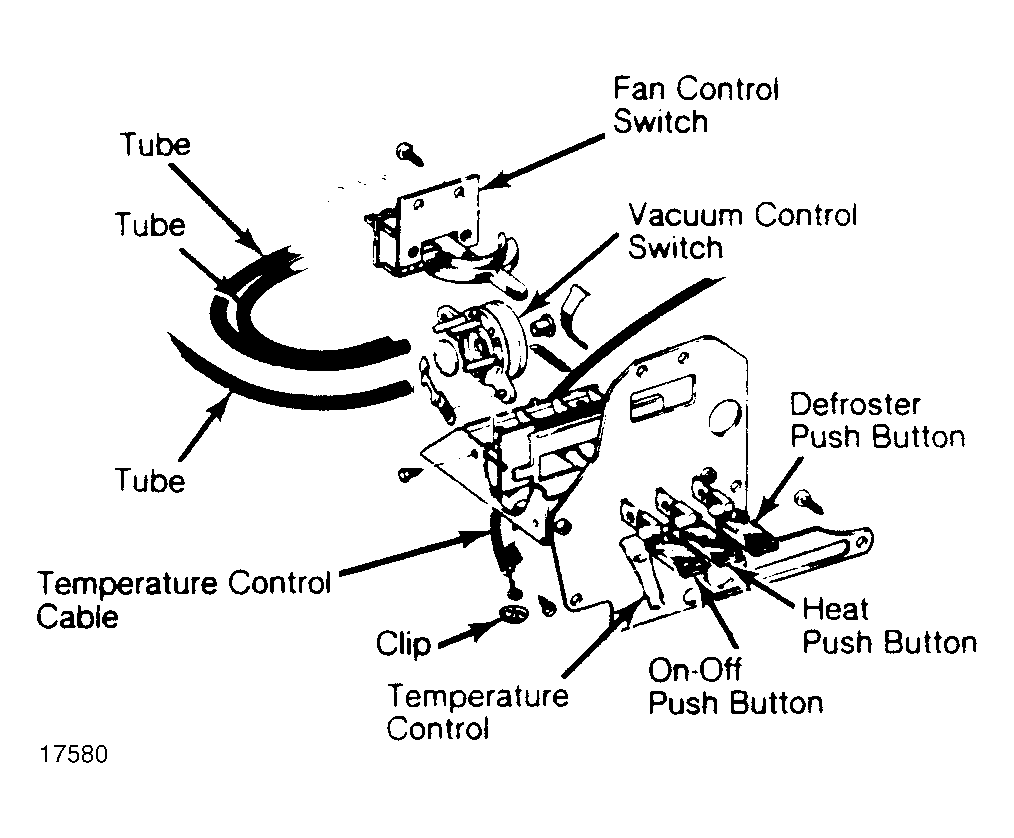

Fig 1: Heater Control Panel (Grand Wagoneer & Truck) Three push buttons on control panel are vacuum operated. Courtesy of American Motors/Jeep Corp.
G17580
