Caster Adjustment

Caster adjustment is made by adding or removing shims at rear of lower control arms.

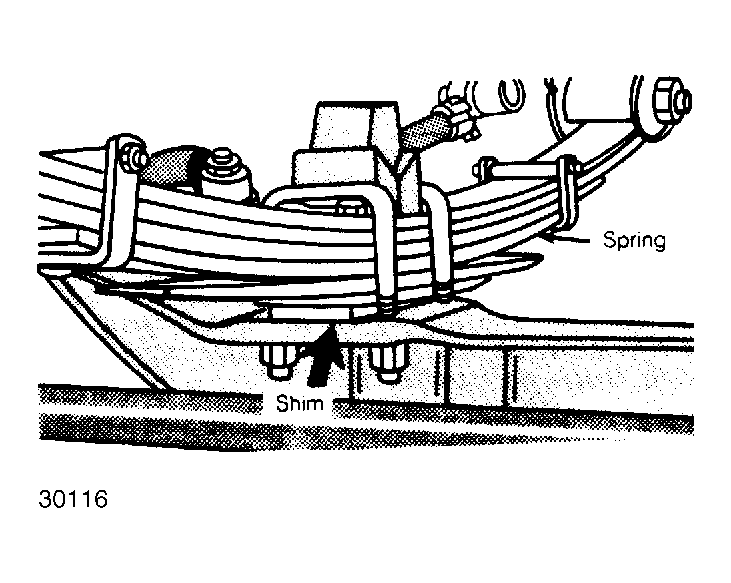

Fig 1: Caster Adjustment

G30116

Courtesy of AMERICAN MOTORS/JEEP CORP.
