Chart 6-A, Man. Trans. Up-Shift Test
Chart 6-A, Man. Trans. Up-Shift Test

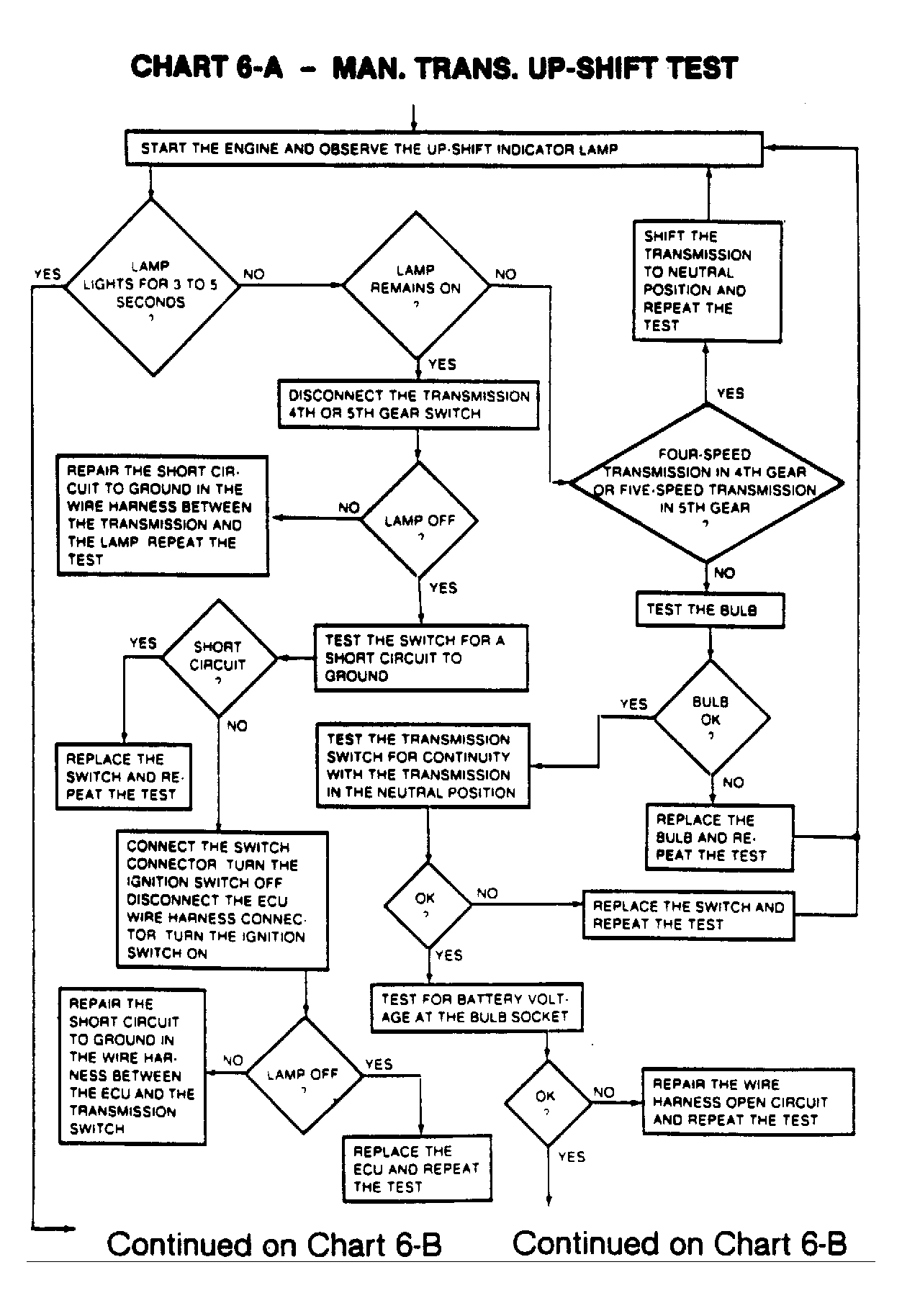

Fig 1: Chart 6-A, Man. Trans. Up-Shift Test
