Section 18 (Servicing - M/T): Adjustments: Linkage
WARNING: This page is about a different car, the 1986 Peugeot 505. However, it is still accessible from the selected car via links, so may be relevant.

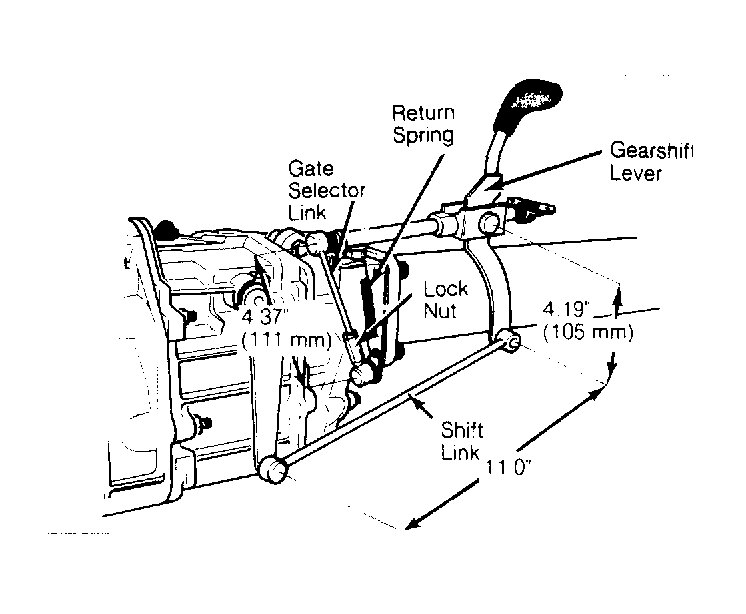

- Install Shift Lever Gauge (00315) and place shift lever in correct position. See Fig 1 . Loosen reverse plunger bolts and place reverse plunger against selector lever. Tighten 2 bolts and remove gauge.
- Lubricate ball sockets. Install shift link with center-to-center dimension "B" of 11.0". See Fig 1
. Adjust gate selector link with center-to-center dimension "A" of 4.37" (111 mm). Holding ball sockets in proper directions, tighten lock nut. Install gate selector link with fixed ball socket side mounted to gearshift lever.NOTE: Gearshift lever dimension "C" is 4.13" (105 mm).
