Test 3: Ignition On: Input

Fig 1: Test 3: Ignition On: Input (1 of 6)
G36965
Fig 2: Test 3: Ignition On: Input (2 of 6)
G36966
Fig 3: Test 3: Ignition On: Input (3 of 6)
G36967

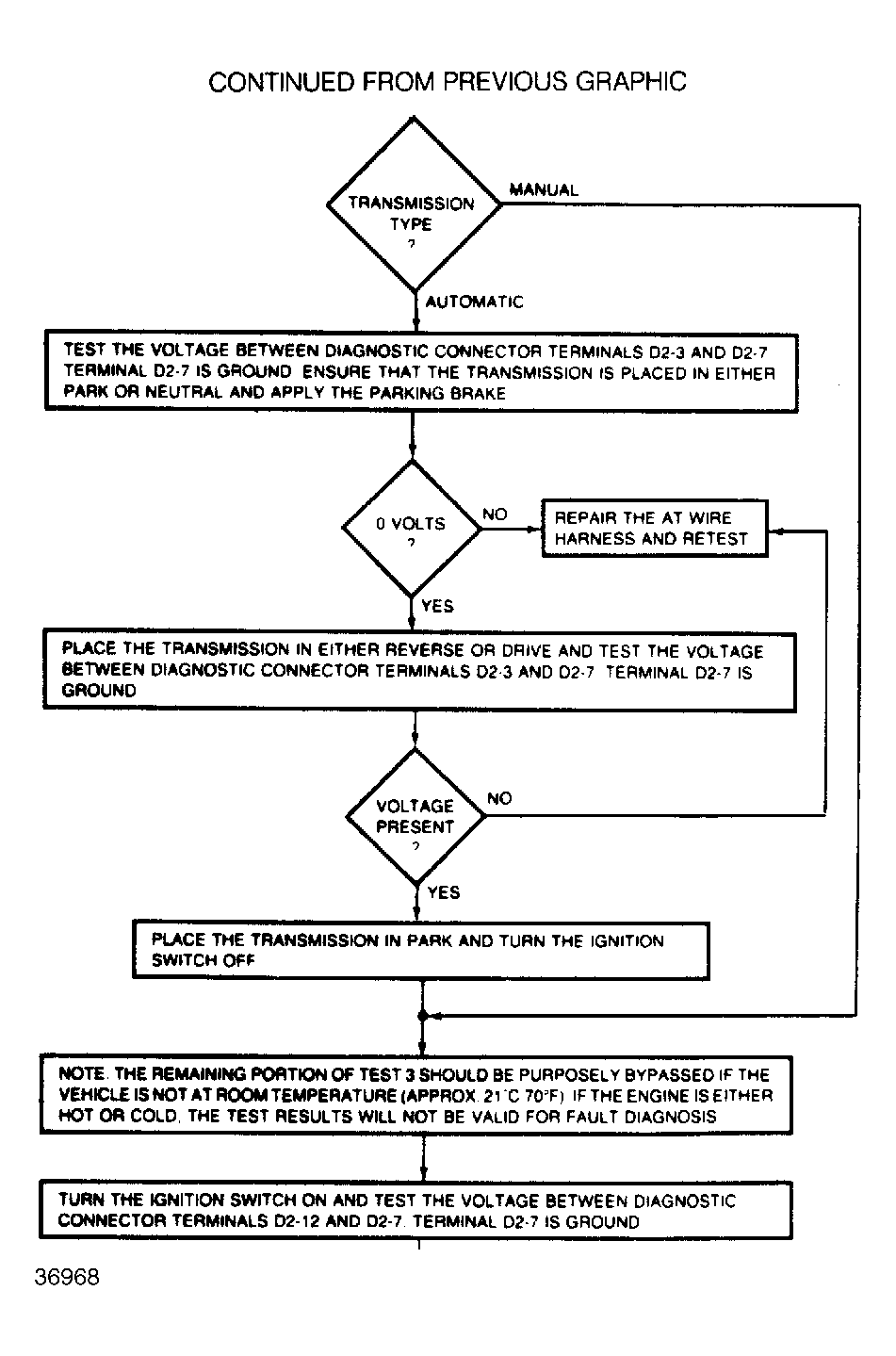

Fig 4: Test 3: Ignition On: Input (4 of 6)
G36968

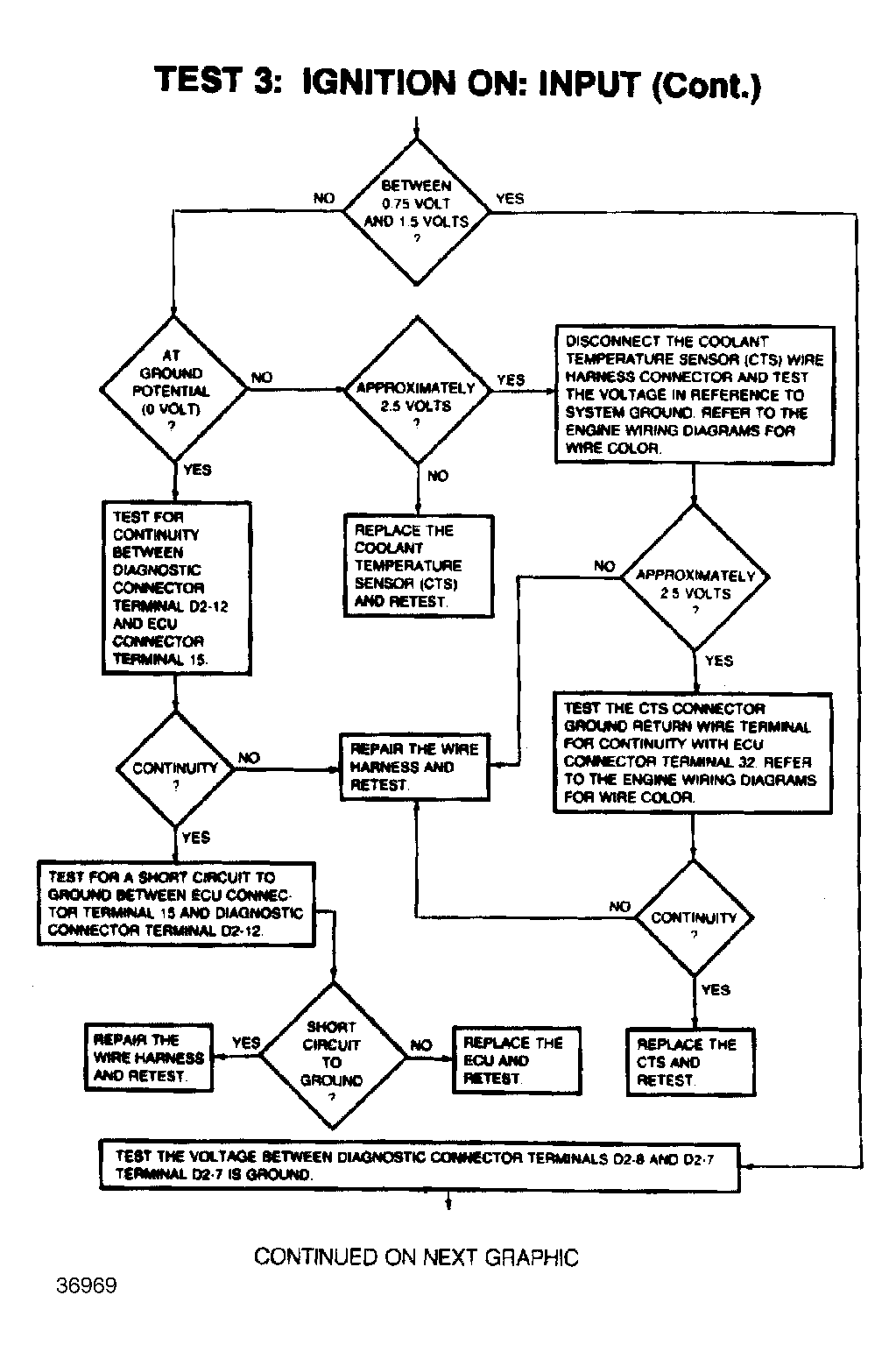

Fig 5: Test 3: Ignition On: Input (5 of 6)
G36969

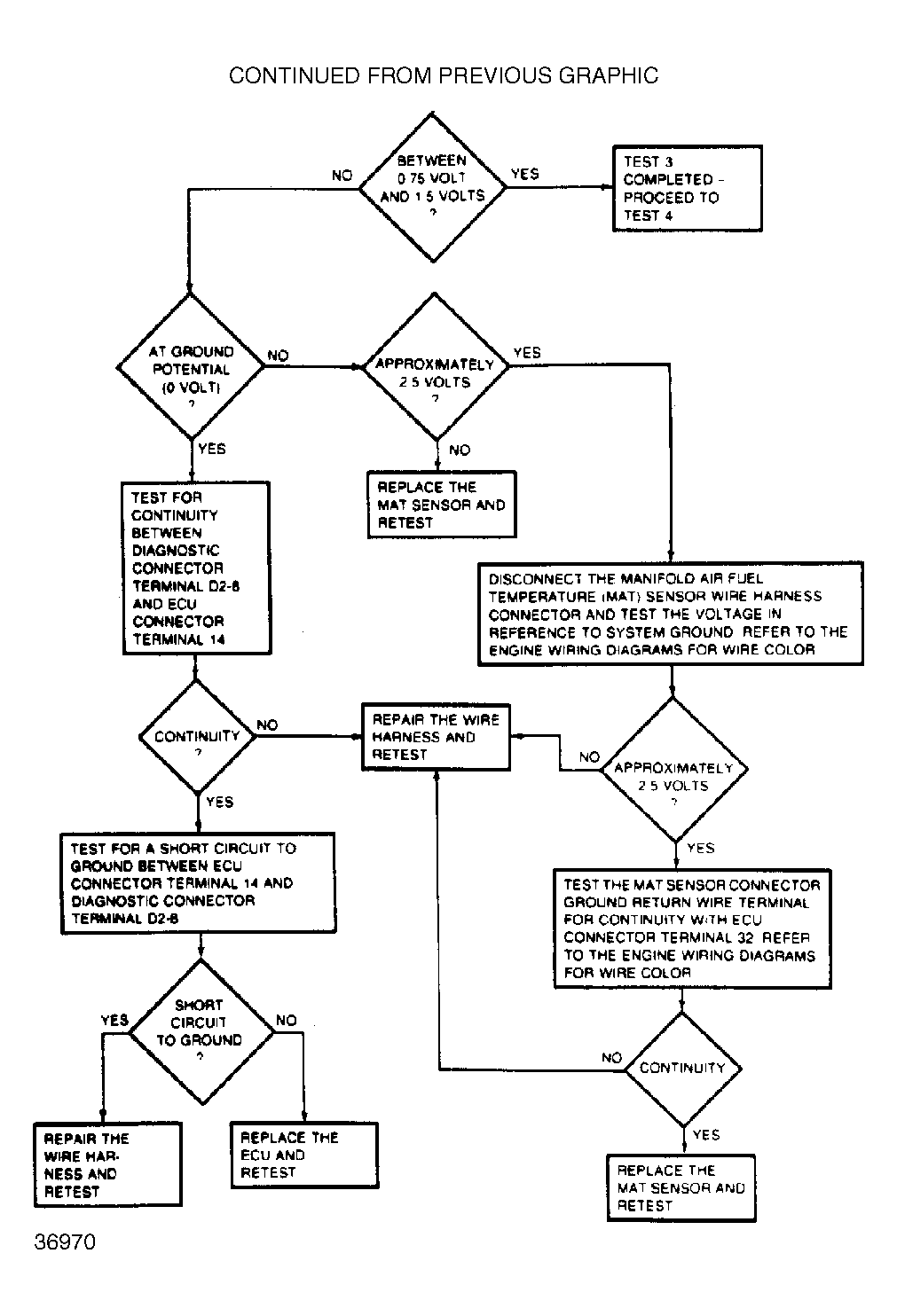

Fig 6: Test 3: Ignition On: Input (6 of 6)
G36970
