Test 2: Ignition On: Power

Fig 1: Test 2: Ignition On: Power (1 of 3)

G36962

Fig 2: Test 2: Ignition On: Power (2 of 3)

G36963

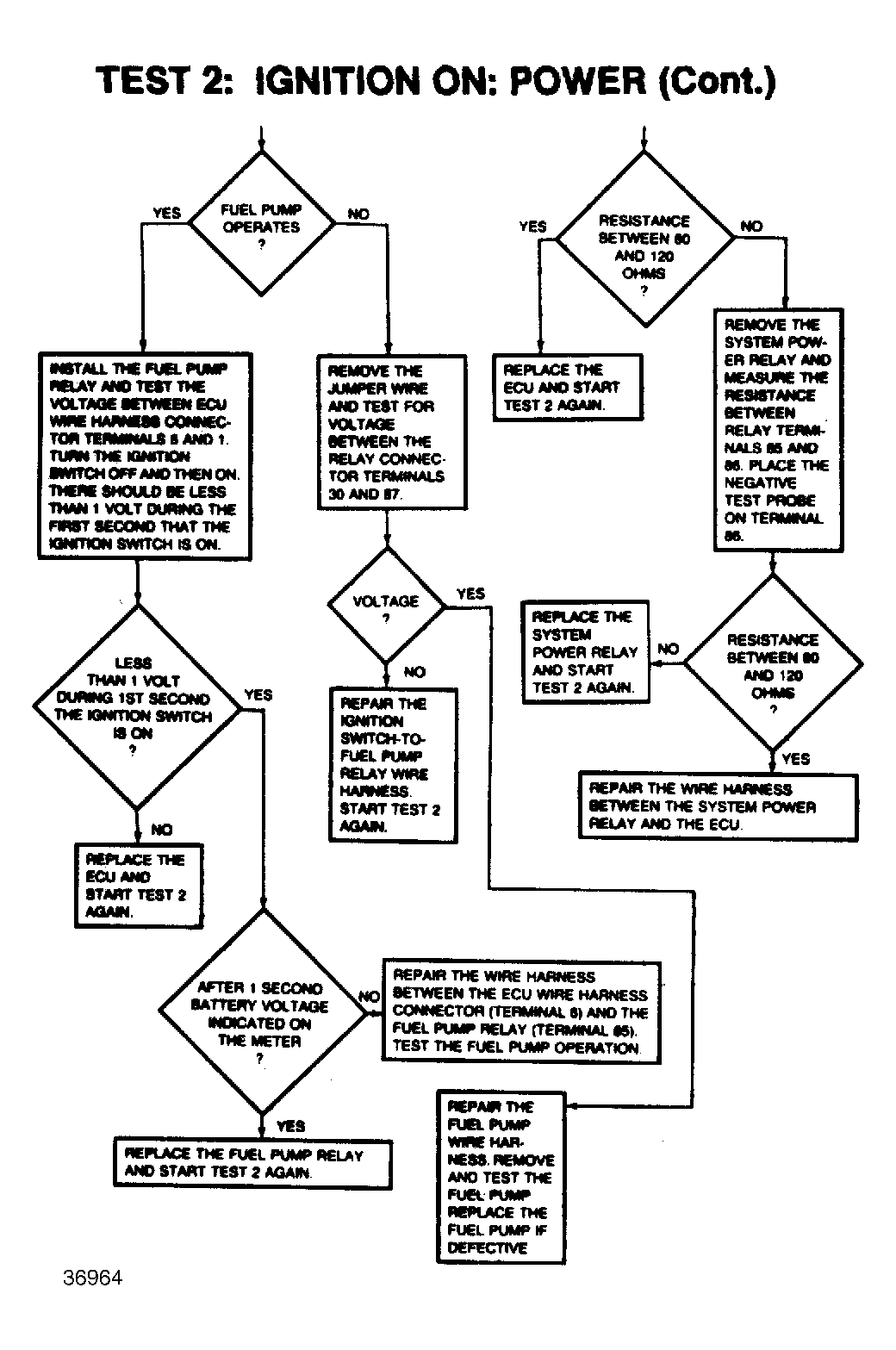

Fig 3: Test 2: Ignition On: Power (3 of 3)

G36964
