Test 6: Manual Transmission Up-Shift
Test 6: Manual Transmission Up-Shift
Fig 1: Test 6: Manual Transmission Up-Shift (1 of 2)

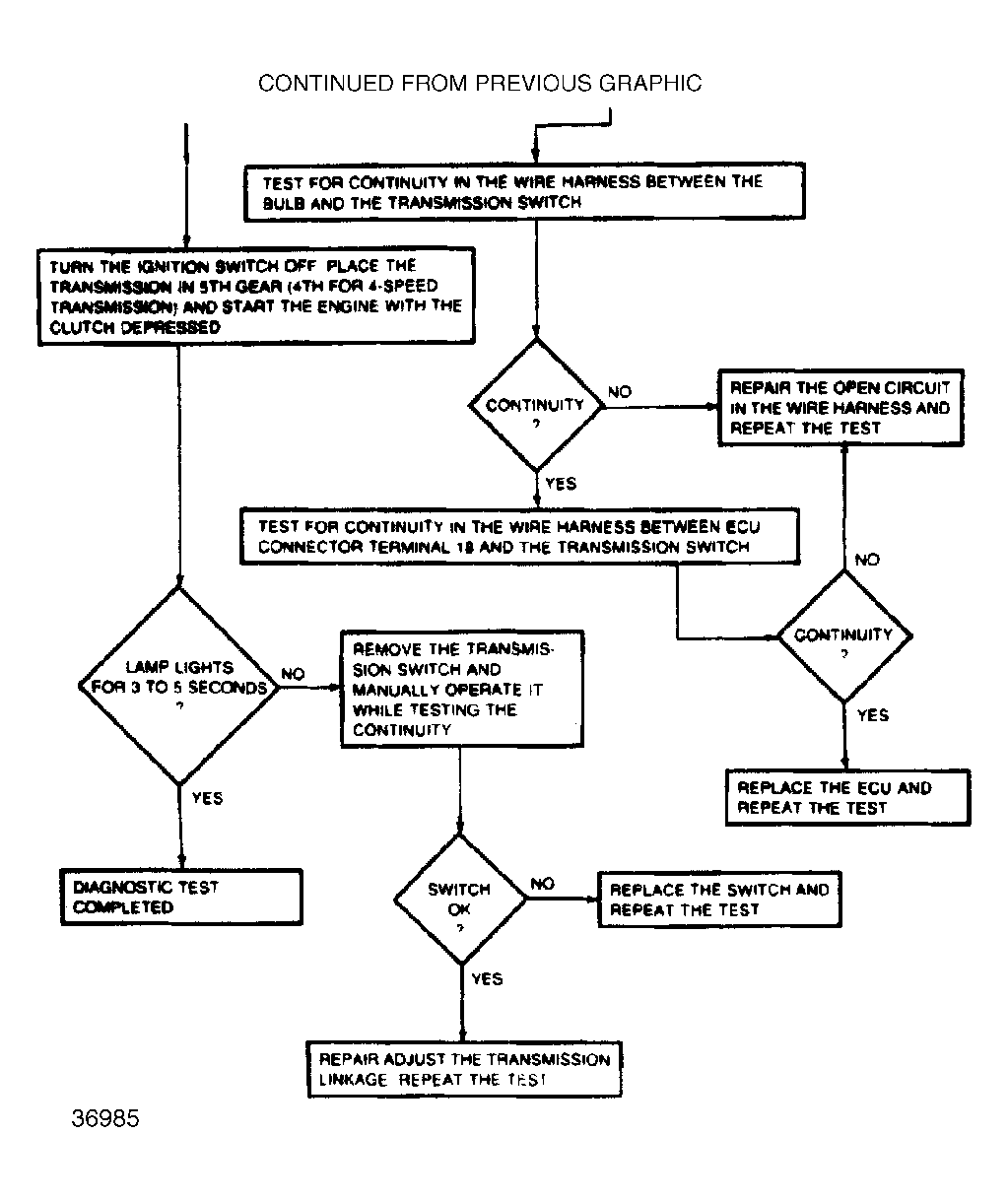

Fig 2: Test 6: Manual Transmission Up-Shift (2 of 2)
