2.8L Feedback Carburetor System
>>
Diagnosis & Testing
>>
Chart 6
Chart 6

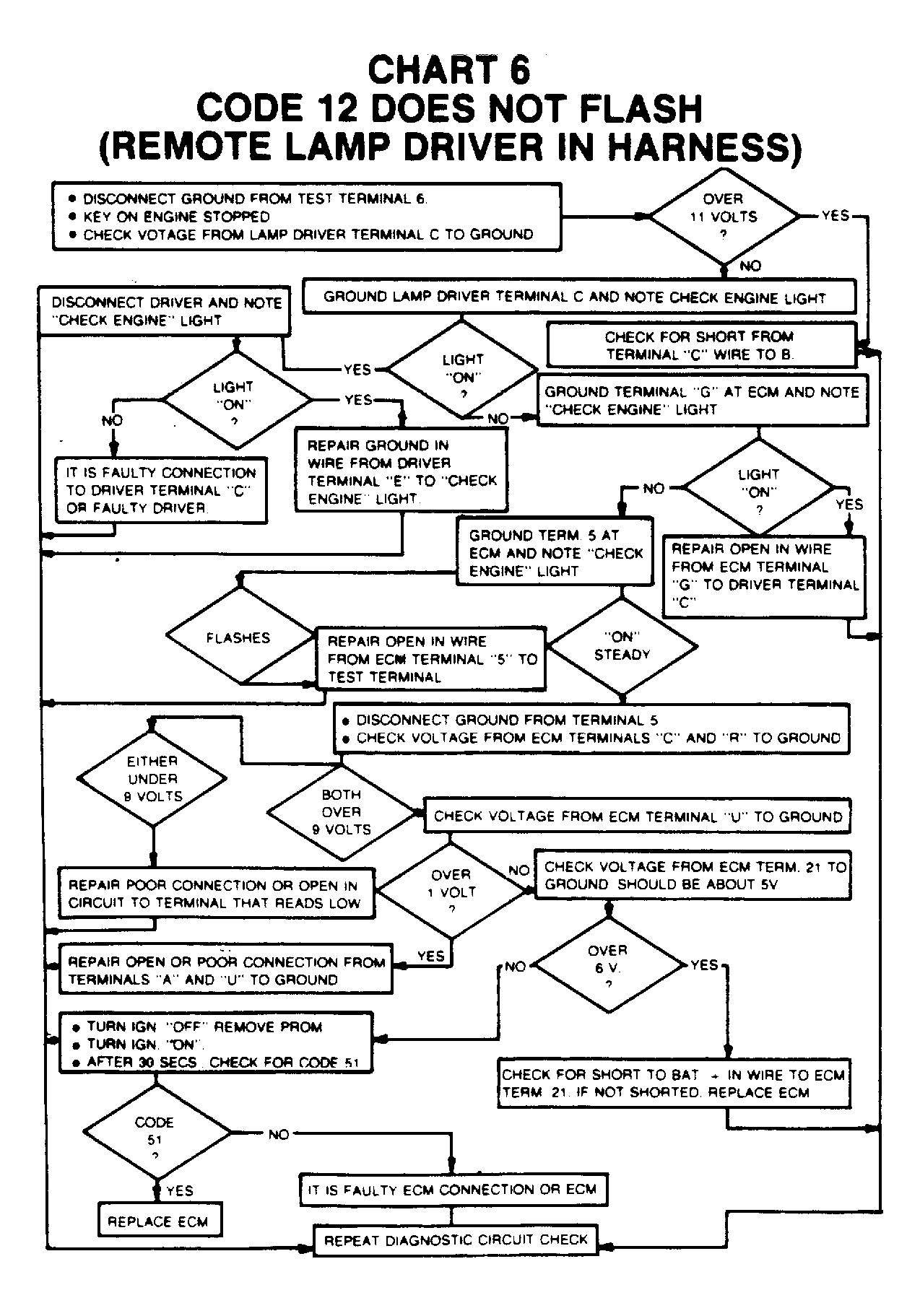

Fig 1: Chart 6, Code 12 Doesn't Flash (Remote Lamp Driver In Harn.)
