Home >> Jeep >> 1986 >> Wagoneer Base, 2.1 B >> Repair and Diagnosis >> Engine Performance >> System >> 2.8L Feedback Carburetor System >> Diagnosis & Testing >> Chart 1

Chart 1

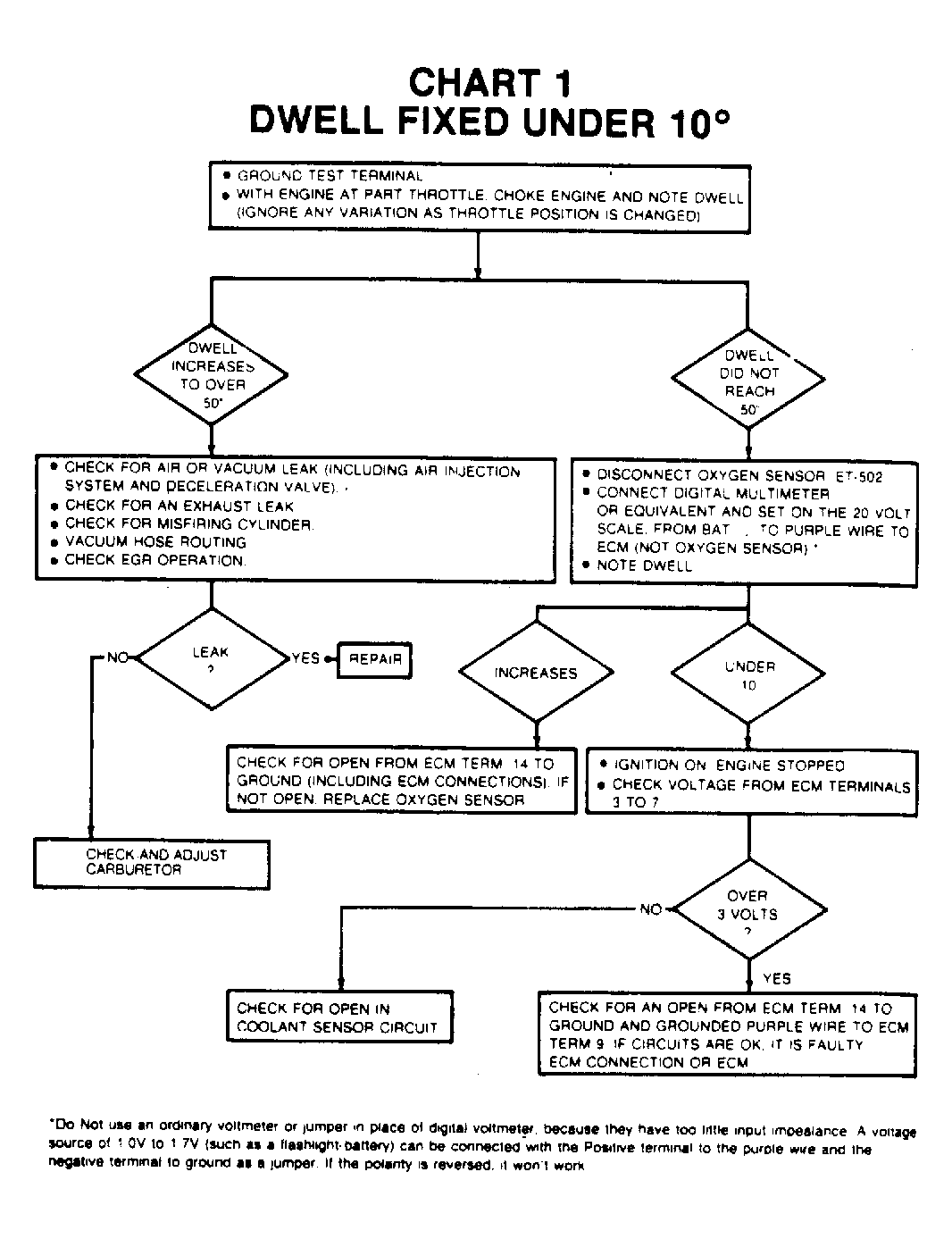

Fig 1: Chart 1, Dwell Fixed Under 10°

G9541
