Floor Jack

Vehicle may be raised by positioning jack under the leaf-spring pivot nearest point to be raised. Align the jack with the axle so that the saddle of the jack is beneath the spring eye pivot end.

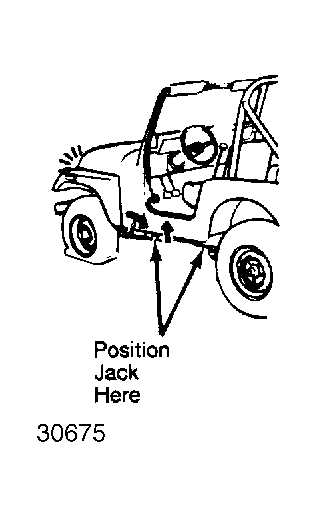

Fig 1: Jacking Points
G30675
