FRONT WHEEL TOE-IN SPECIFICATIONS REVISION
TECHNICAL SERVICE BULLETIN
Reference Number(s): 02-57-88, Date of Issue:
December 19, 1988
FRONT WHEEL TOE-IN SPECIFICATION REVISION
Model(s): 1988 Jeep Grand Wagoneer & Truck
Bulletin No.: 02-57-88
Group: Steering & Suspension
Date: December 19, 1988
Subject: Front Wheel Toe-In Specification Revision
SERVICE INFORMATION

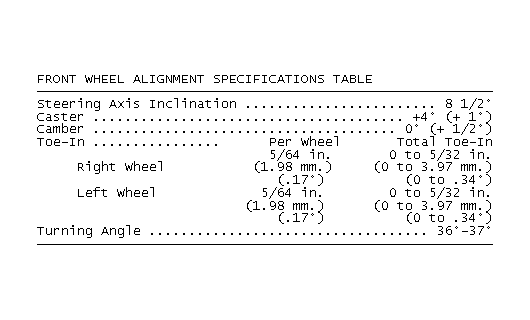

The front wheel toe-in specification for the Jeep Grand Wagoneer and Truck has been changed. If service is required use the following revised front wheel alignment specifications.
