Test No. 8B - PCV Shut-Off

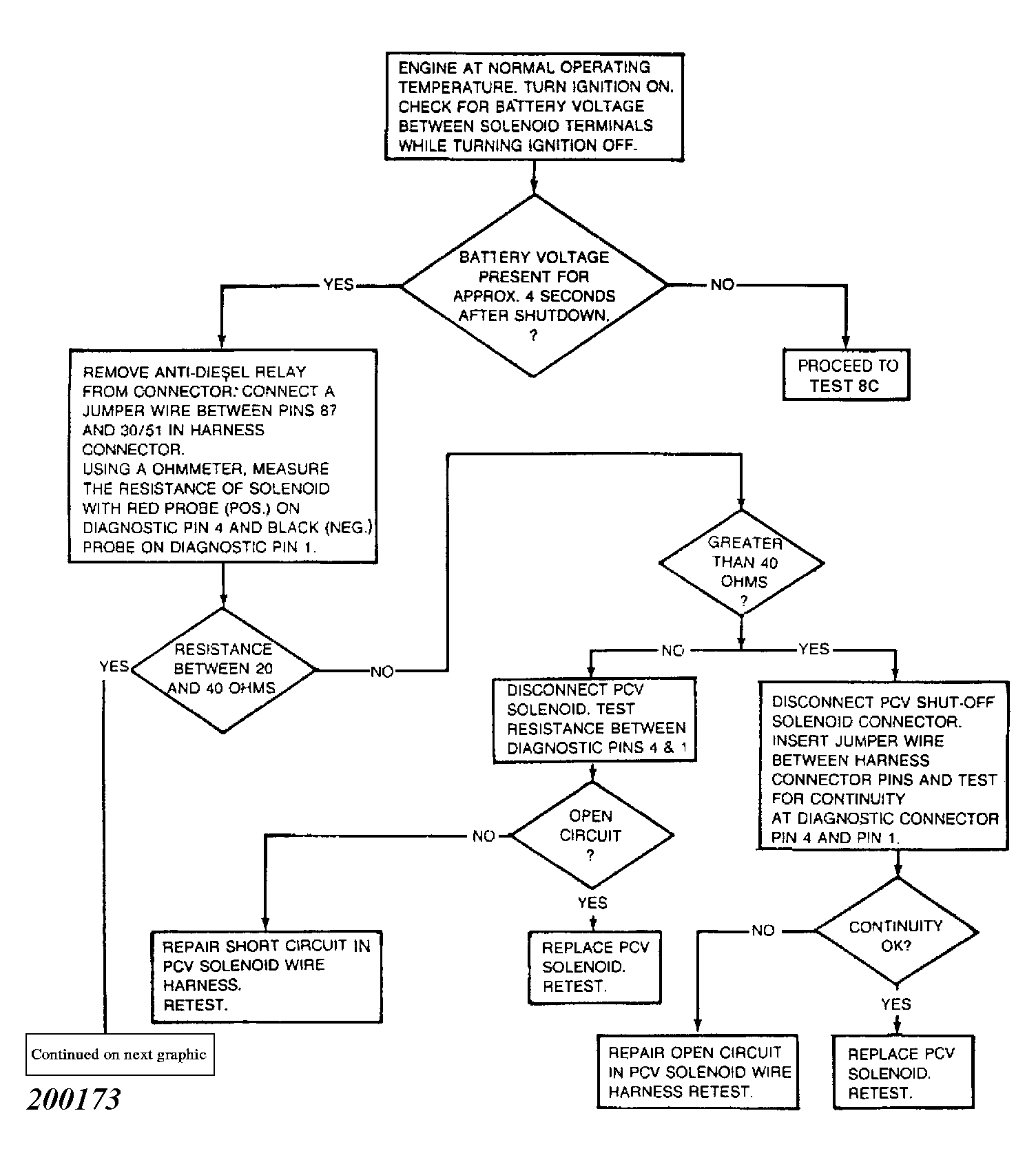

Fig 1: Test No. 8B, PCV Shut-Off Test (1 of 2)

G200173

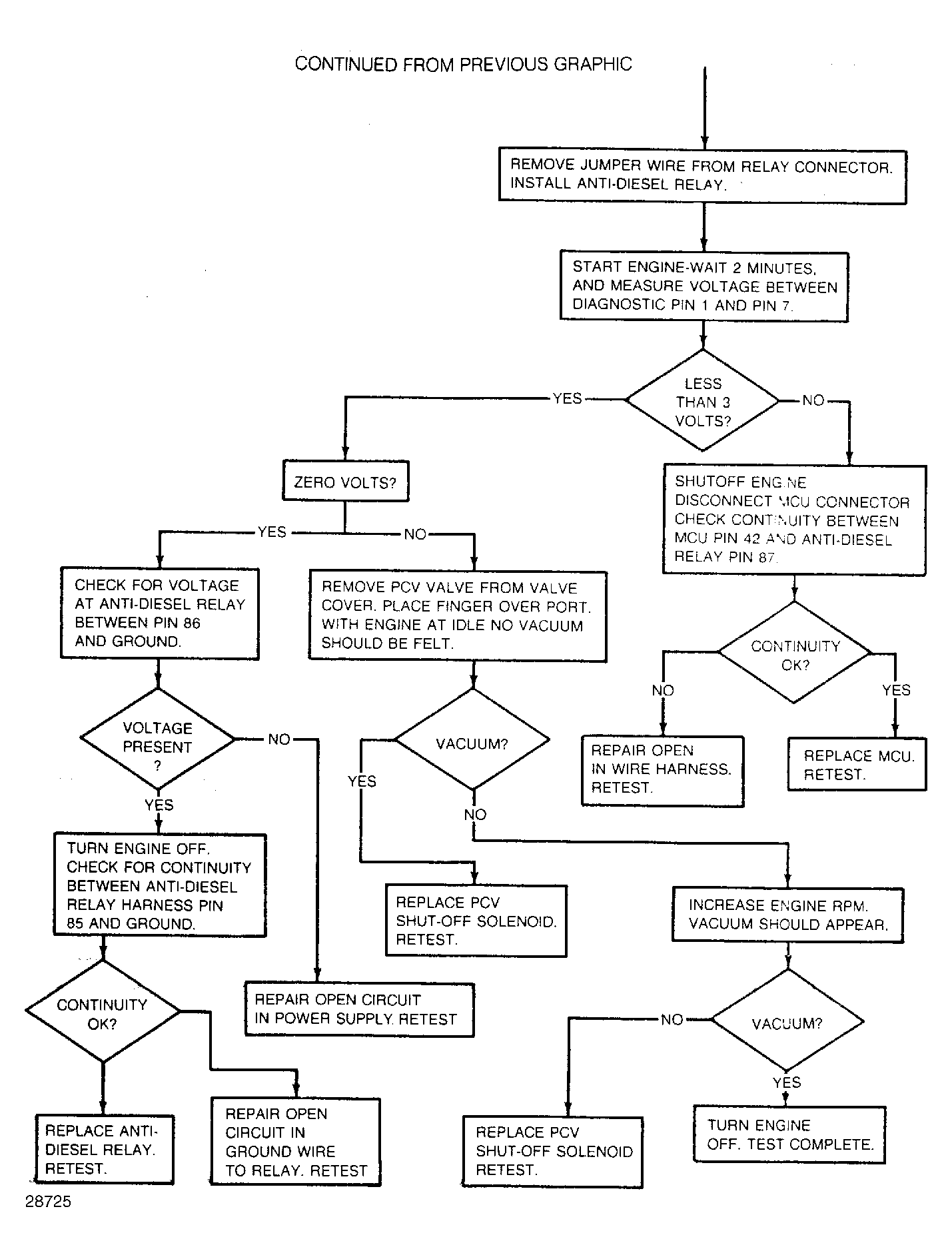

Fig 2: Test No. 8B, PCV Shut-Off Test (2 of 2)

G28725
