Test No. 9 - Idle Speed Control System Test

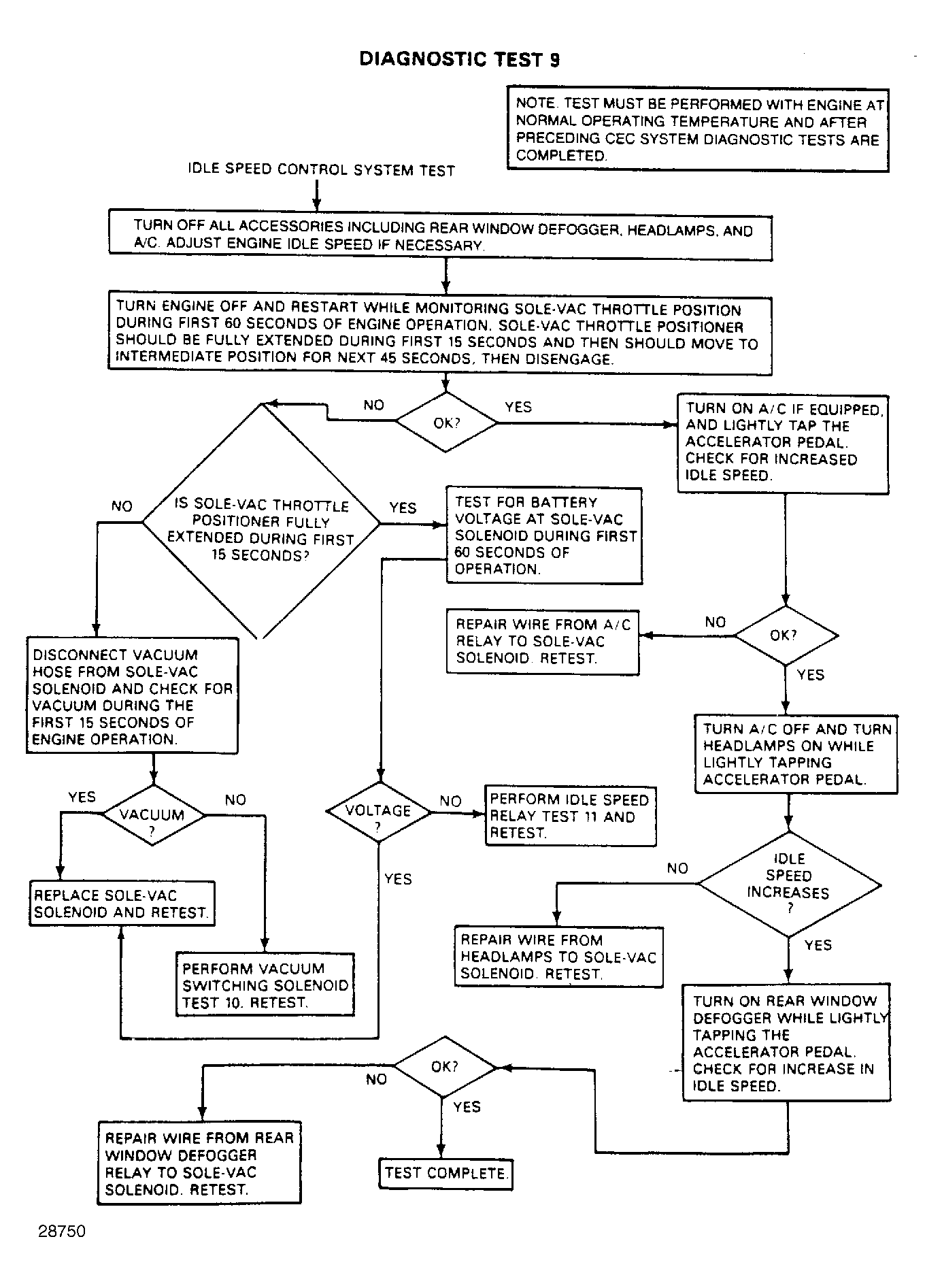

Fig 1: Test No. 9, Idle Speed Control System Test

G28750
