Sending Units/Sensor Switches
SENDING UNITS/SENSOR SWITCHES LOCATION
| Component | Location |
|---|---|

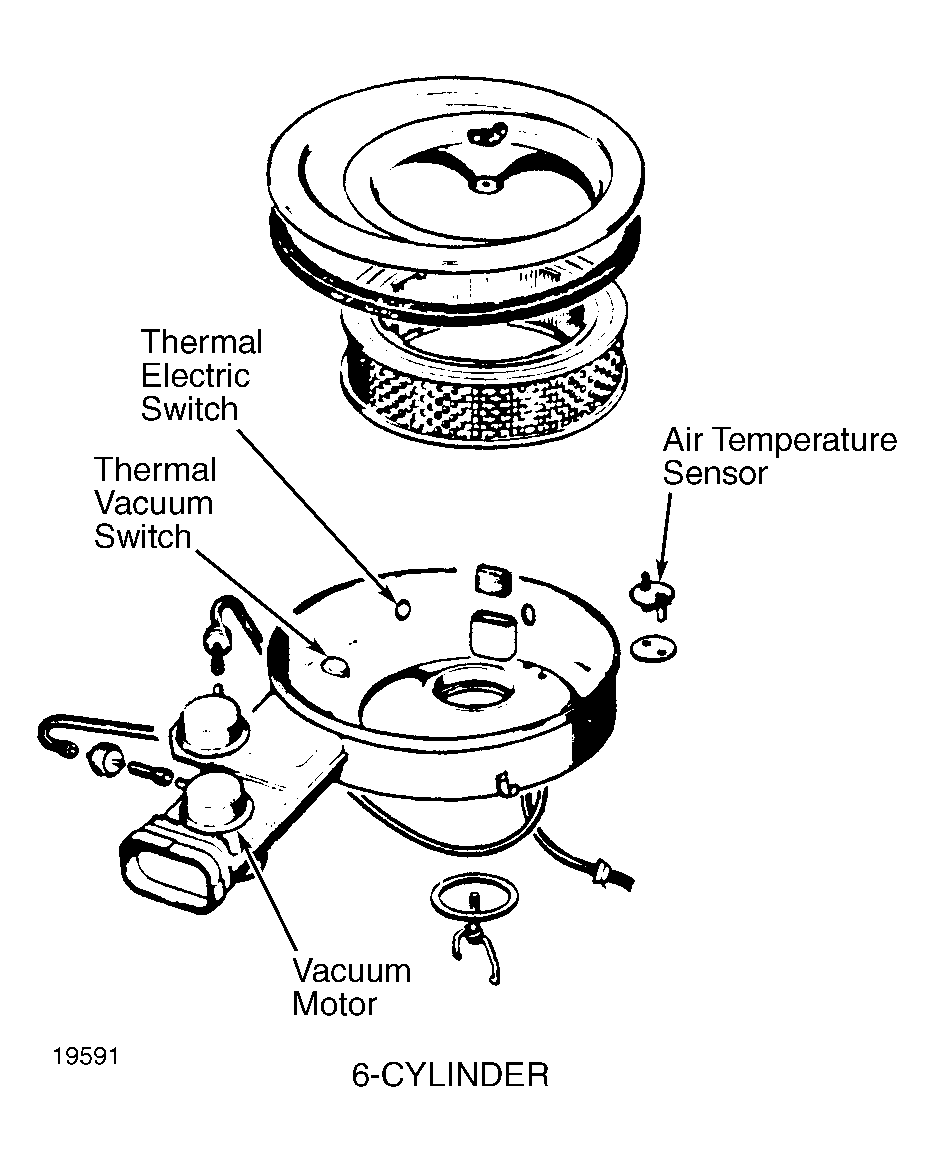

| Air Temperature Sensor (6-Cyl.) | In air cleaner. See Figure. |
| Coolant Temperature Sensor (4-Cyl.) | Left rear of cylinder block. See Figure. |
| Coolant Temperature Switch (6-Cyl.) | On side of intake manifold. See Figure & Figure . |
| Cruise Control Speed Sensor | Between upper and lower speedometer cables. |
| Fuel Gauge Sending Unit | On top rear of fuel tank. |
| Intake Manifold Heater Switch | On side of intake manifold. See Figure. |
| Knock Sensor (6-Cyl.) | On top of intake manifold. See Figure & Figure . |
| Oxygen Sensor | In exhaust manifold. See Figure & Figure . |

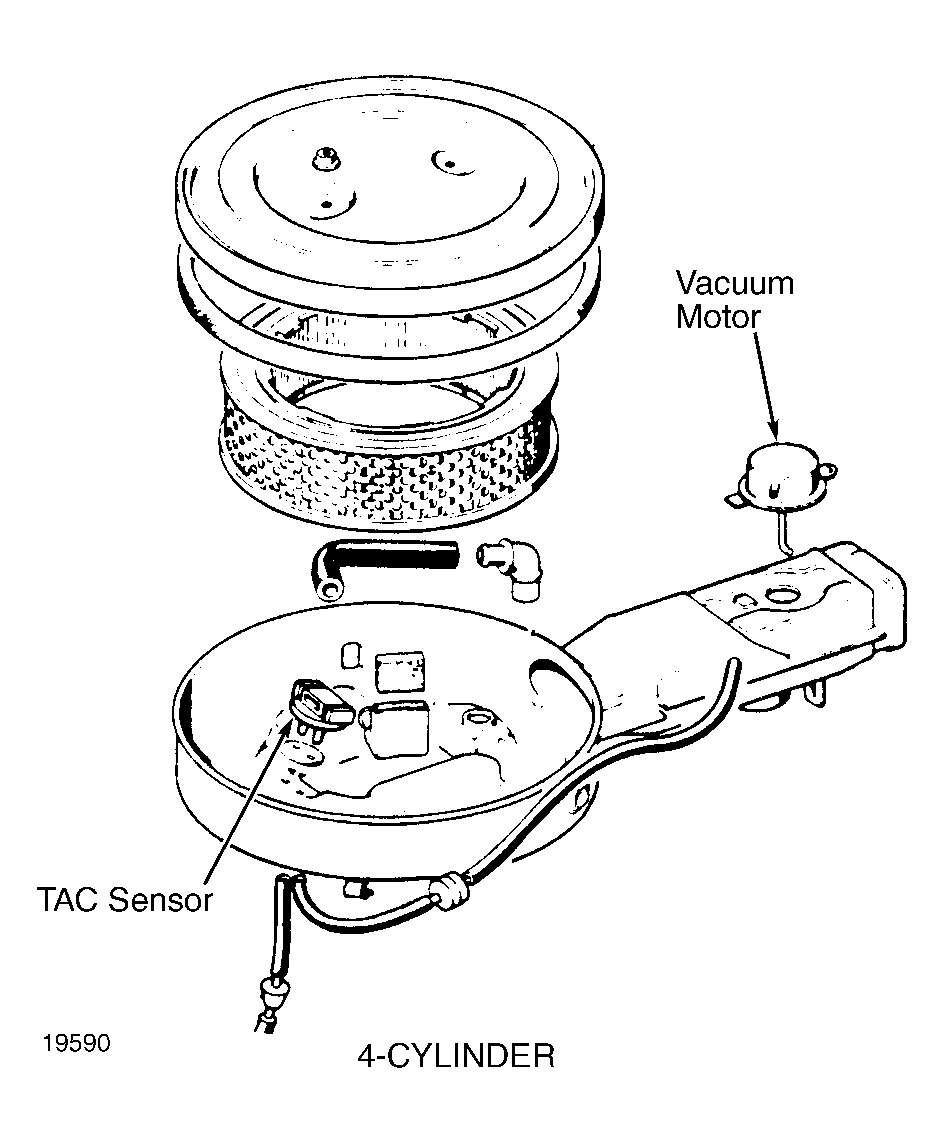

| TAC Sensor (4-Cyl.) | In air cleaner. See Figure. |
| Thermal Electric Switch | In air cleaner. See Figure, Figure & Figure . |
| Thermal Sensor (4-Cyl.) | Right front side of engine bay. |
| Thermal Vacuum Switch (6-Cyl.) | In air cleaner. See Figure. |
| Vacuum Switch | On right side of engine block. See Figure. |
| Vacuum Switch | On right side of engine block. See Figure. |
| Wide Open Throttle (WOT) Switch | On base of throttle body. See Figure. |
