Control Units/Timers
CONTROL UNITS/TIMERS LOCATION
| Component | Location | |
|---|---|---|
| Constant Voltage Regulator (CVR) | In fuel gauge housing. | |
| Cruise Control Regulator | Under instrument panel near headlight switch. | |
| Electronic Ignition Control Unit | Under coolant reservoir or behind glove box. | |
| ECM Microprocessor | ||

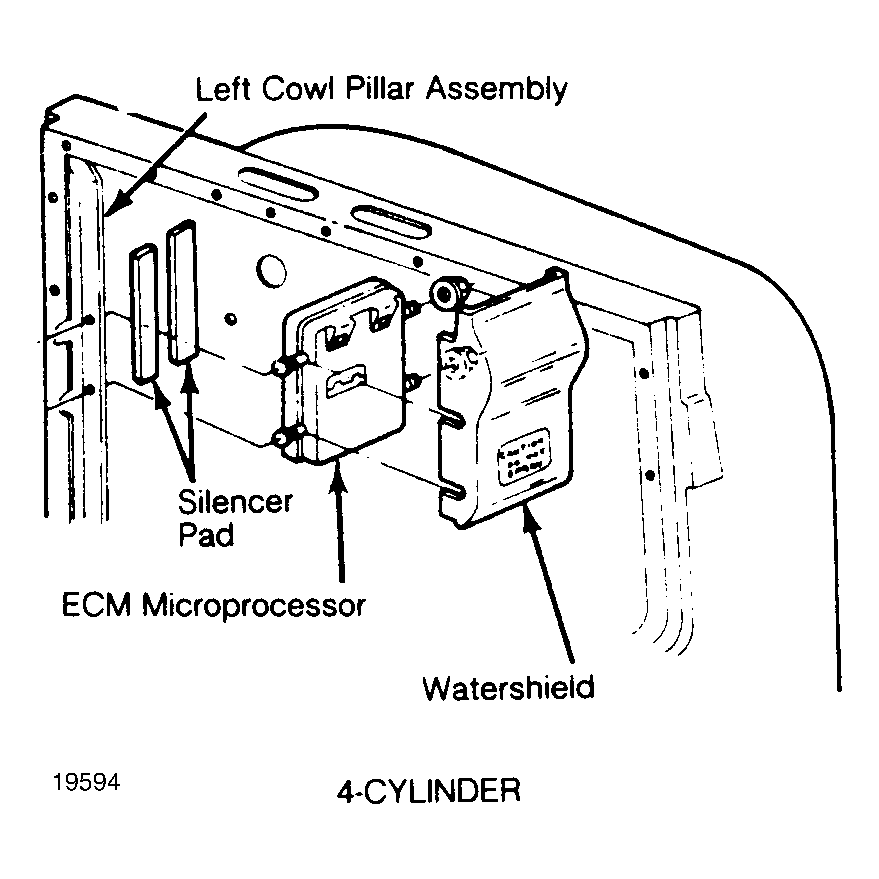

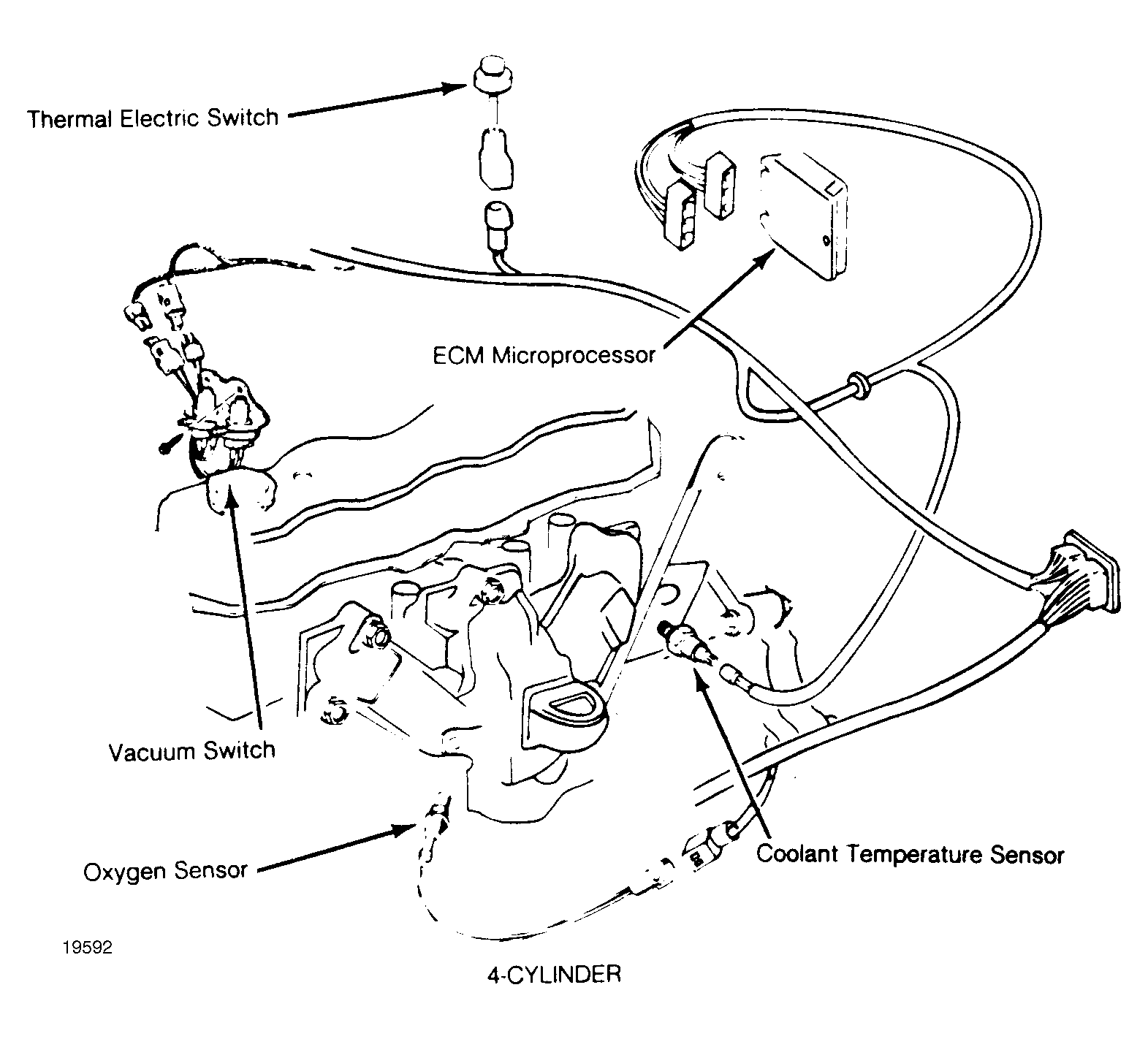

| 4-Cyl. | Left kick panel. See Figure, Figure & Figure . | |

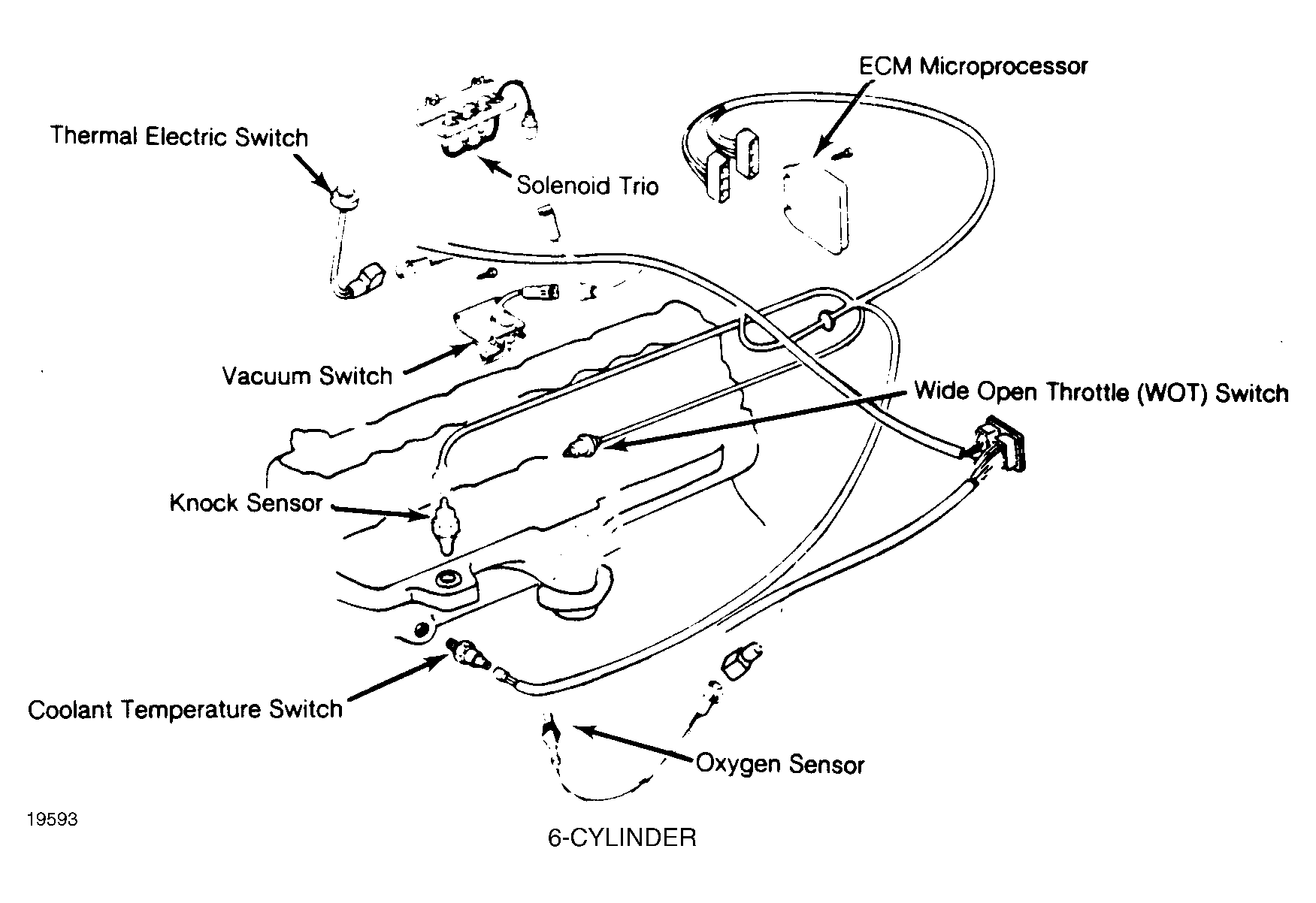

| 6-Cyl. | Left inner fender panel. See Figure, Figure & Figure . | |
