Air Cleaner - Thermostatic: Description
All Jeep vehicles use a system for pre-heating air entering carburetor. This system is part of the air cleaner and maintains air temperature at a point where carburetor can be calibrated at a leaner setting to reduce hydrocarbon emissions and improve engine performance during warm-up.

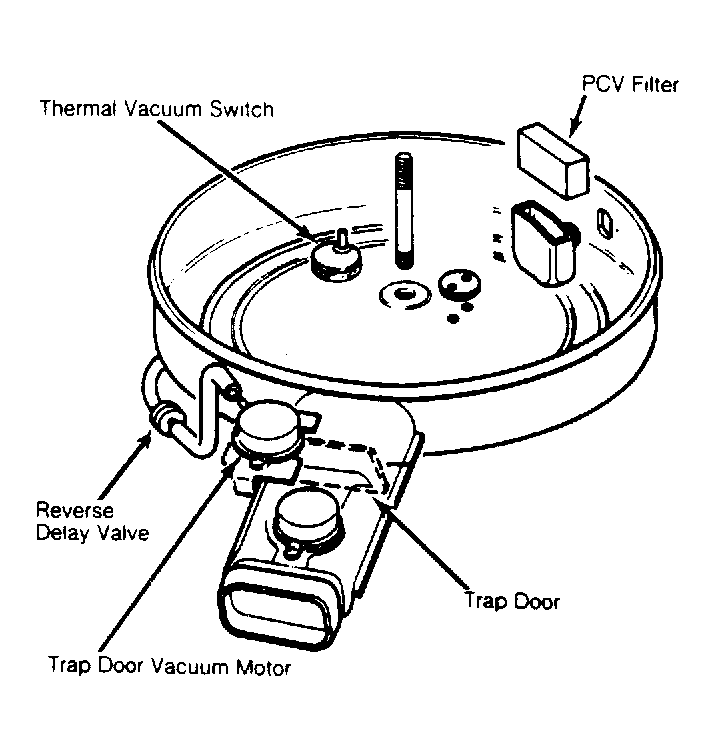

Jeep systems are vacuum operated and consist of a heat shroud on exhaust manifold, hot air duct, thermal sensor switch, vacuum motor, air valve assembly and reverse delay valve.
