Float Level (Dry Setting)

NOTE: Dry float setting is a preliminary adjustment only. Final adjustment (wet setting) must be made after carburetor is installed on vehicle.

Remove float bowl. Hold upside-down. Float is adjusted correctly if top of float is specified distance from top of float bowl. See Fig 1 .

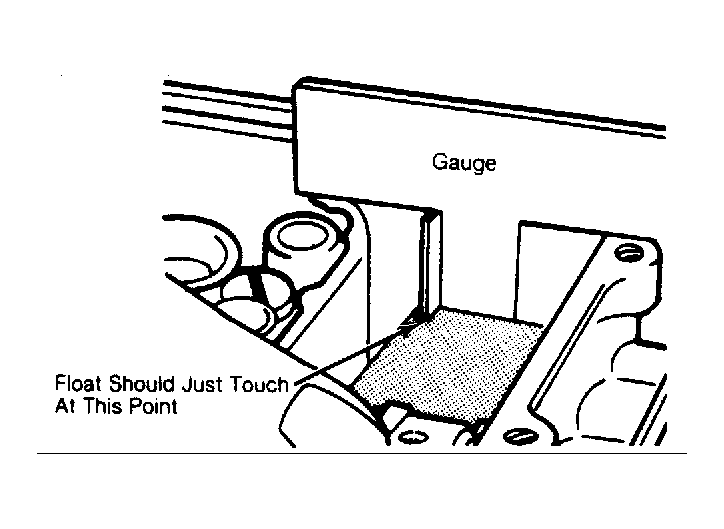

Fig 1: Float Level Adjustment (Dry Setting) This is a preliminary setting; final adjustment must be made with carburetor installed on engine.
