Test No. 5 - Electronic Ignition Retard Test

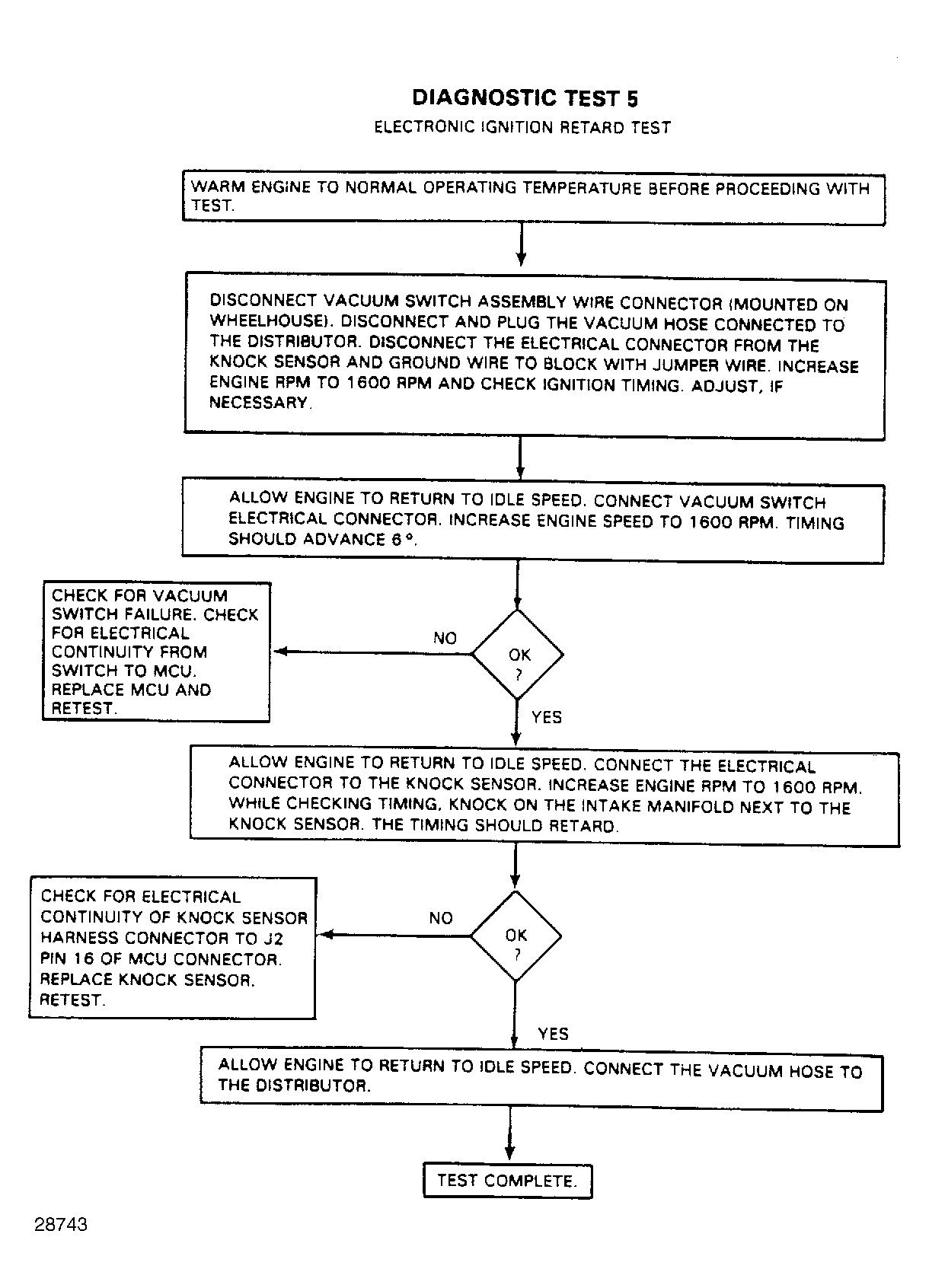

Fig 1: Test No. 5, Electronic Ignition Retard Test

G28743
