Description & Operation

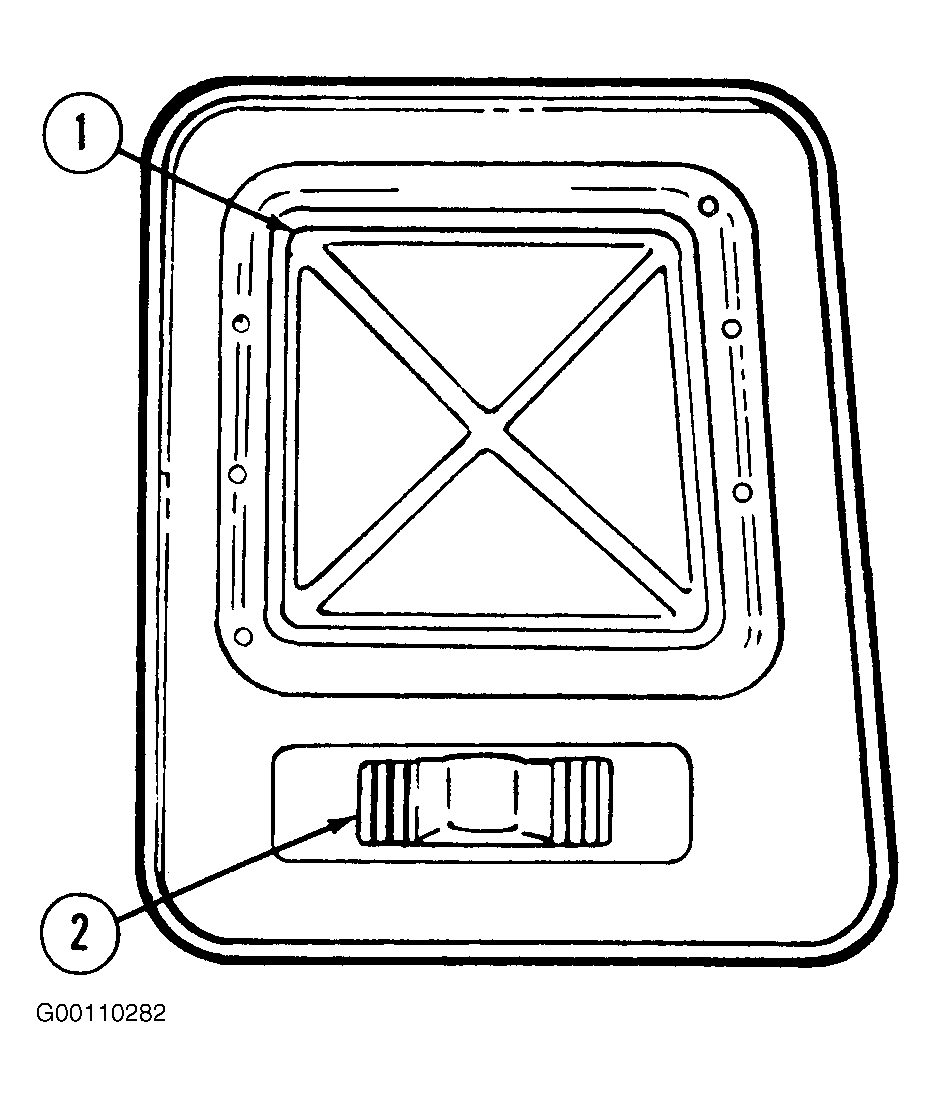

Power rearview mirror assemblies consist of door-mounted mirrors with internal motor drive and backing plate. System includes a door panel switch and necessary wiring components. The mirror control switch contains two separate switches, the operating switch (1) and the selector switch (2). See Fig 1 .
The selector switch determines left or right mirror operation and the operating switch provides multi-directional adjustment of the mirror.
