Turning Angle Adjustment

1. The turning angle stop screws are located on back side of steering knuckle, just above axle centerline. To adjust, loosen lock nut on stop screw.
2. Using full-floating turn table under each wheel, adjust stop screw IN to increase turning angle and OUT to decrease turning angle. Tighten lock nut.

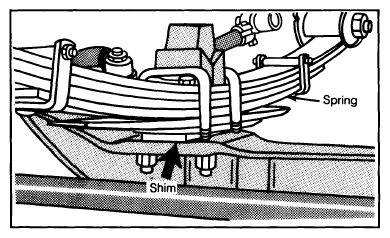

Fig 1: Caster Adjustment

Courtesy of CHRYSLER GROUP, LLC

To adjust, insert shim between spring and axle.
