Evaporative Emissions System: Maintenance

No adjustments are required with this system. The air inlet filter in bottom of charcoal canister should be replaced every 30, 000 miles. A regular inspection of system components should be made and defective components replaced as necessary.

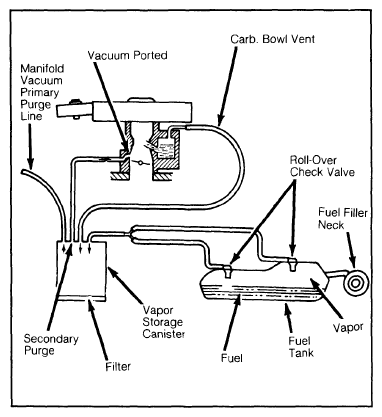

Fig 1: Typical Jeep Evaporation Control System
G09360583Courtesy of CHRYSLER GROUP, LLC
