Tailgate Window Defogger: Testing: Relay

  1. Remove tailgate trim panel and access hole cover, then disconnect three-wire connector at relay. Connect a jumper wire from accessory terminal on fuse panel to "X" terminal on relay. Connect another jumper wire from accessory terminal on fuse panel to red wire (with tracer) terminal on switch. Connect a third jumper wire from purple wire terminal of switch to "P" terminal on relay.
  2. Connect a 12-volt test lamp from "L" terminal of relay to a good ground. With ignition switch in "ACC" position, test lamp should not light. Press switch on, lamp should light and remain on for 8 to 12 minutes.

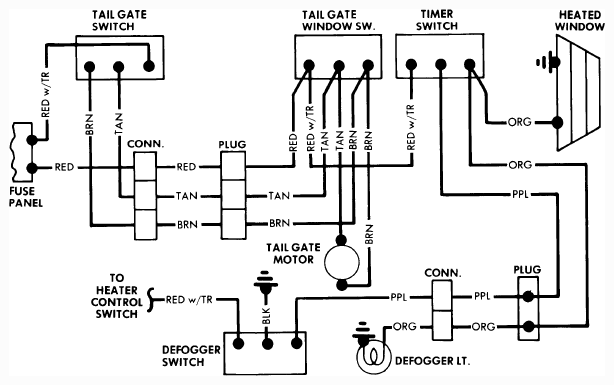

    Fig 1: Wiring Diagram for Heated Rear Window
    G09335796Courtesy of CHRYSLER GROUP, LLC
