Accelerator Pump: Notes

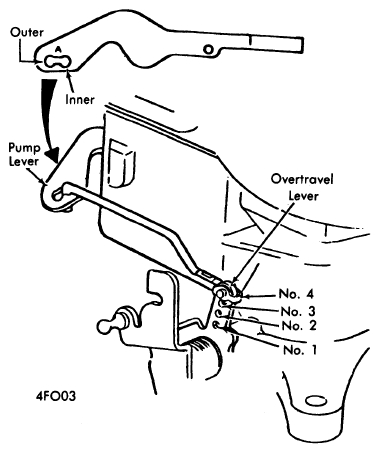

Pump lever has two holes (inner and outer) and pump over-travel lever on throttle shaft has four holes (No. 1 hole nearest throttle lever) for pump rod engagement. Connect pump rod in inner hole of pump lever on all carburetors and connect rod in specified hole of over-travel lever.
