Tune-Up - 4 CYL & 6 CYL: Distributor

Point Gap
	F4	.020"
	232" & 258"	.016"
Cam Angle
	F4	42°
	232" & 258"	31-34°
Breaker Arm Spring Tension
	F4	17-20 ozs.
	232" & 258"	17-21 ozs.
Condenser Capacity
	F4	.25-.28 mfd.
	232" & 258"	.18-.23 mfd.

Fig 1: 4 Cyl Firing Order & Timing Marks

Courtesy of CHRYSLER GROUP, LLC

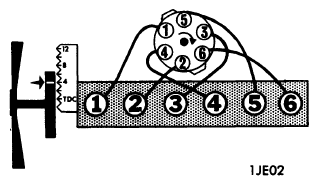

Fig 2: 6 Cyl. Firing Order & Timing Marks

Courtesy of CHRYSLER GROUP, LLC
